Asrock

Asrock X870E Taichi OCF AMD X870E Socket AM5 ATX

SKU X870E TAICHI OCF
£420.00
£374.01
£420.00
£374.01
Excluding taxes
Socket AM5, AMD X870E Chipset, 2 x DDR5-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 2 x SATA III, 1 x M.2(M), UEFI AMI, ATX

Description

X870E Taichi OCF is the ultimate overclocking motherboard, designed for pros pushing limits with LN2. It delivers extreme power, precise tuning, and record-breaking DDR5 and CPU overclocking potential.

Taichi Revolution
Comes to AM5
ASRock flagship Taichi lineup now unifies water cooling, extreme overclocking, and creator platforms under one brand.
Marking the debut of X870E Taichi OCF, ASRock expands the X870 lineup and continues to grow the Taichi family on the AM5 platform.

Specifications

Internal I/O
Number of M.2 (M) slots 1
12V power connector Yes
Supported storage drive interfaces Micro SATA III, M.2
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 2
Number of chassis fan connectors 4
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
USB 3.2 Gen 2x2 connectors 2
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 2
Number of RGB LED pin headers 1
Technical details
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Motherboard form factor ATX
Component for PC
Audio
Audio output channels 5.1 channels
Performance
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD X870E
RAID levels 0, 1, 10
Audio output channels 5.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer AMD
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket Socket AM5
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Maximum internal memory 128 GB
ECC сompatibility ECC & Non-ECC
Storage controllers
Supported storage drive interfaces Micro SATA III, M.2
RAID levels 0, 1, 10
RAID support Yes

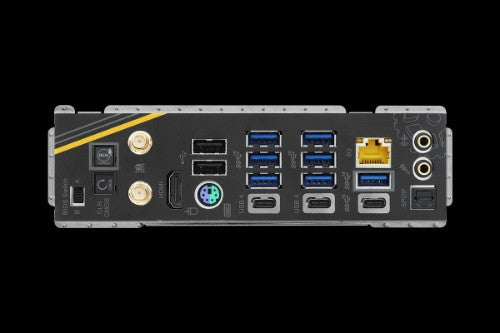

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 2.0 ports quantity 2
VGA (D-Sub) ports quantity 0
S/PDIF out port Yes
PS/2 ports quantity 1
Microphone in Yes
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
USB4 Gen 3x2 ports quantity 2
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller Realtek RTL8126
Ethernet interface type 5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.4
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio output channels 5.1 channels
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 5.x) slots 2
PCI Express x4 (Gen 4.x) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 512 Mbit
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Weight & dimensions
Width 305 mm
Depth 244 mm
Packaging content
Cables included SATA
Antenna included Yes
