ASUS

ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX

SKU 90MB1G20-M0EAYC
£108.40
£72.16
£108.40
£72.16
Excluding taxes
ASUS PRIME H610M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 96 GB, DIMM

Description

ASUS PRIME H610M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Specifications

Internal I/O
Number of M.2 (M) slots 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
12V power connector Yes
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
S/PDIF out connector Yes
Number of SATA III connectors 4
Number of COM connectors 1
Number of chassis fan connectors 2
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel H610
Parallel processing technology support Not supported
Motherboard form factor micro ATX
Component for PC
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Processor
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 4800,5000,5200,5400,5600 MHz
Maximum internal memory 96 GB
Unbuffered memory Yes
ECC сompatibility Non-ECC
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 6
Graphics
Parallel processing technology support Not supported

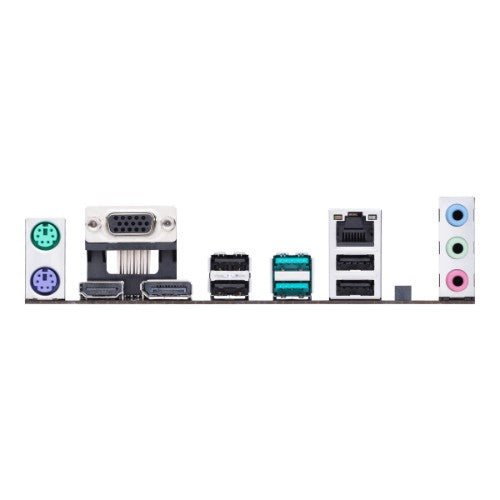

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 2.0 ports quantity 4
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 2
Microphone in Yes
Headphone outputs 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 1
Network
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Packaging data
Package width 270 mm
Package depth 263 mm
Package height 51.5 mm
Package weight 1.07 kg
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Weight & dimensions
Height 39 mm
Package width 270 mm
Package depth 263 mm
Package height 51.5 mm
Package weight 1.07 kg
Weight 554 g
Width 244 mm
Depth 216 mm
Other features
Height 39 mm
Package width 270 mm
Package depth 263 mm
Package height 51.5 mm
Package weight 1.07 kg
Weight 554 g
