ASUS PRO Q870I-C-CSM Intel Q870 LGA 1851 (Socket V1) mini ITX

Intel Q870, 2 x SO-DIMM slots, max. 128GB, DDR5, Intel I219LM 1Gb Ethernet, 256 Mb Flash ROM, Mini-ITX

Key Features

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

Description

Mini-ITX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	2
Number of COM connectors	2
Number of chassis fan connectors	1
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Q870
Parallel processing technology support	Not supported
Motherboard form factor	mini ITX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Q870
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	2
Memory slots type	SO-DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	6400 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	3
Graphics
Parallel processing technology support	Not supported

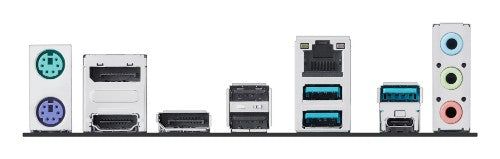

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel WGI219LM
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Q870
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Product colour	Multicolour
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS
BIOS memory size	256 Mbit
Packaging data
Package width	230 mm
Package depth	185 mm
Package height	60 mm
Package weight	640 g
Software
Windows operating systems supported	Windows 10 x64, Windows 11
Weight & dimensions
Height	50 mm
Package width	230 mm
Package depth	185 mm
Package height	60 mm
Package weight	640 g
Weight	405 g
Width	170 mm
Depth	170 mm
Other features
Height	50 mm
Package width	230 mm
Package depth	185 mm
Package height	60 mm
Package weight	640 g
Weight	405 g
