ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD X870E Socket AM5 ATX

Socket AM5, AMD X870E Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 5 x M.2(M), UEFI AMI, ATX

Description

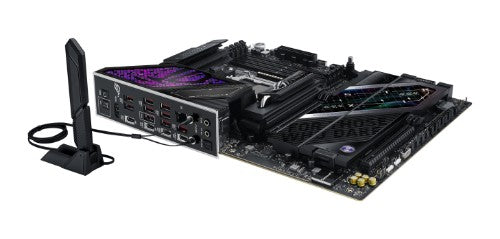

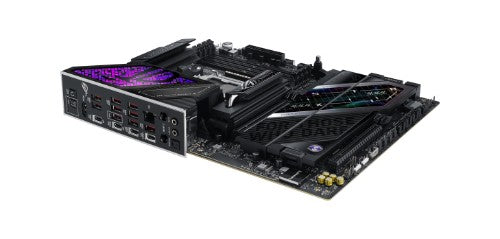

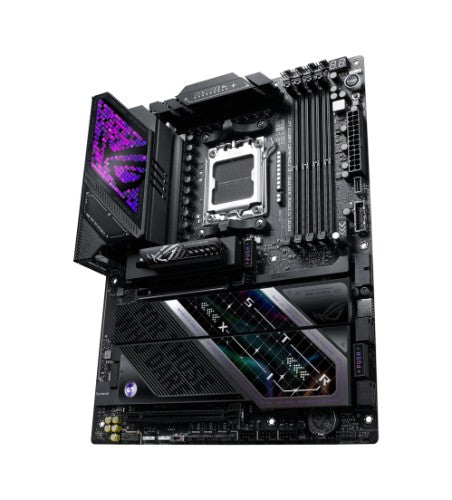

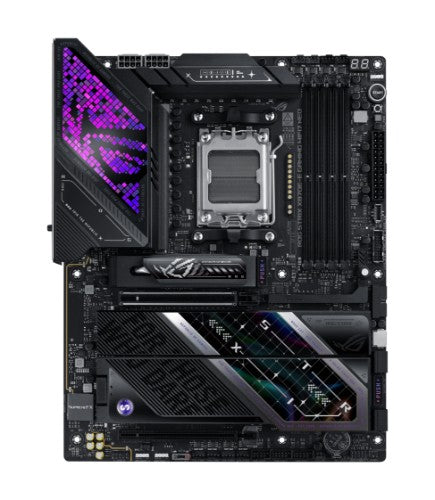

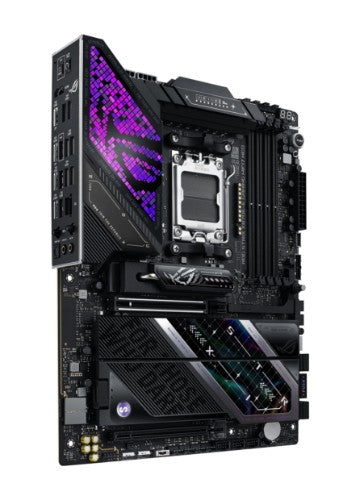

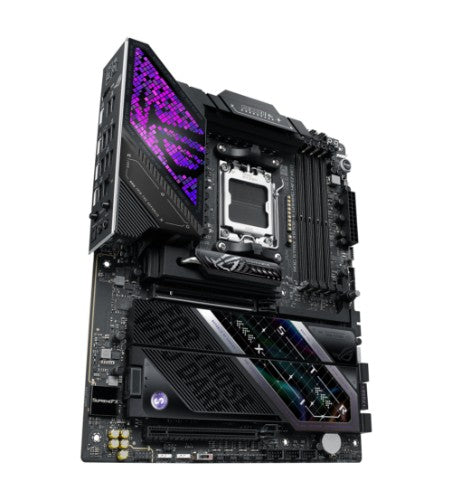

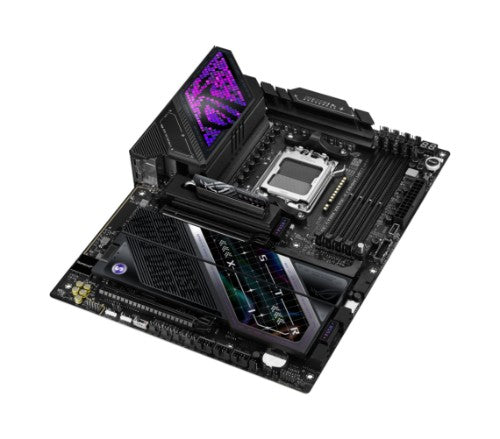

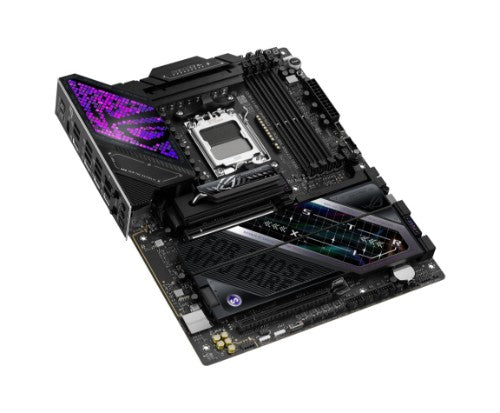

ROG Strix X870E-E Gaming WiFi7 Neo
The ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen™ 9000 Series processors. Enhancements such as PCIe® lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.

Specifications

Internal I/O
Number of M.2 (M) slots	5
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	SATA III, M.2
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	2
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Parallel processing technology support	Not supported
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
RAID levels	0, 1, 5, 10
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III, M.2
RAID levels	0, 1, 5, 10
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Features
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Product colour	Black
Expansion slots
Number of M.2 (M) slots	5
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Clear CMOS button	Yes
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.7 kg
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.7 kg
Weight	1.9 kg
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.7 kg
Weight	1.9 kg
