Gigabyte

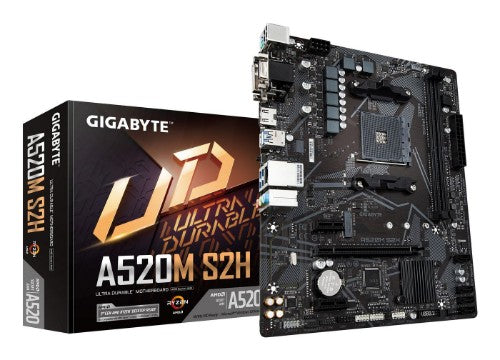

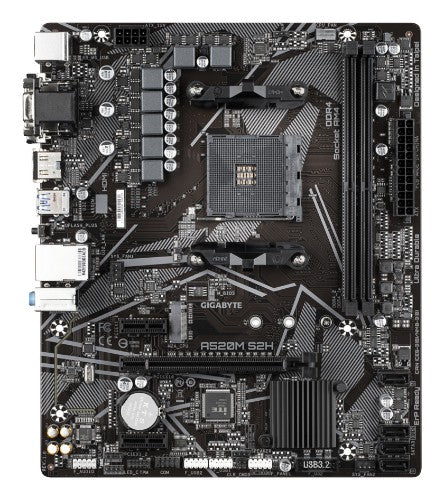

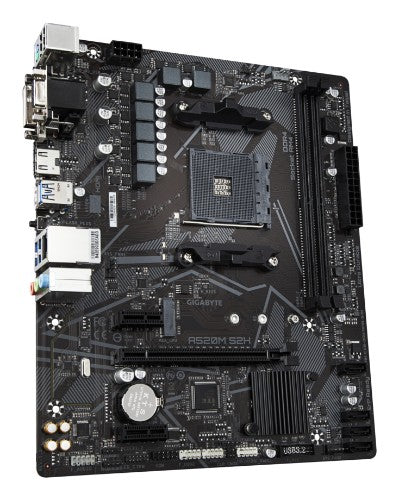

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

SKU A520M S2H
£40.98
£40.98
Excluding taxes
A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Supported storage drive interfaces M.2, PCI Express 3.0, SATA
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
mSATA ports quantity 0
Power fan connector Yes
Number of SATA connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of chassis fan connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
Technical details
Motherboard chipset family AMD
Motherboard chipset AMD A520
Supported processor sockets Socket AM4
On-board graphics card No
Motherboard form factor micro ATX
Component for PC
Maximum internal memory supported by processor 64 GB
Warranty period 3 year(s)
Audio
Audio output channels 7.1 channels
Performance
Motherboard chipset family AMD
Motherboard chipset AMD A520
RAID levels 0, 1, 10
Supported processor sockets Socket AM4
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Processor
Processor manufacturer AMD
Maximum internal memory supported by processor 64 GB
Compatible processor series AMD Ryzen 3000 Series
Supported processor sockets Socket AM4
Maximum number of SMP processors 1
Processor socket Socket AM4
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz
Maximum internal memory 64 GB
ECC сompatibility ECC & Non-ECC
Storage controllers
Supported storage drive interfaces M.2, PCI Express 3.0, SATA
RAID levels 0, 1, 10
RAID support Yes
Graphics
On-board graphics card No
HDCP Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 2.0 ports quantity 2
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 1
Network
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Features
Motherboard chipset family AMD
Motherboard chipset AMD A520
Supported processor sockets Socket AM4
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Harmonized System (HS) code 84733020
Product colour Black
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS type UEFI AMI
Clear CMOS jumper Yes
BIOS memory size 128 Mbit
ACPI version 5.0
Clear CMOS button Yes
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Video
HDCP Yes
Packaging data
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 740 g
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Harmonized System (HS) code 84733020
Weight & dimensions
Height 35 mm
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 740 g
Width 244 mm
Depth 205 mm
Packaging content
Batteries included Yes
Other features
Height 35 mm
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 740 g
mSATA ports quantity 0
