MSI

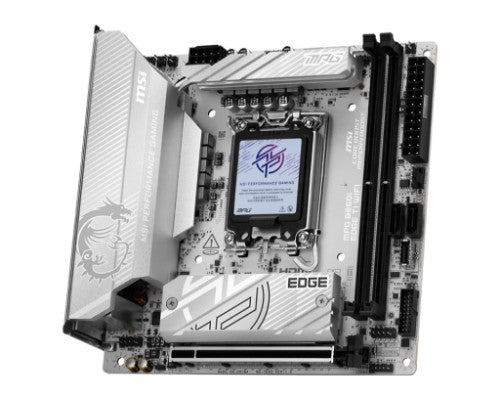

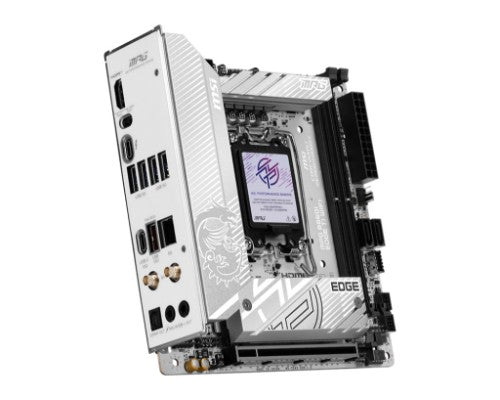

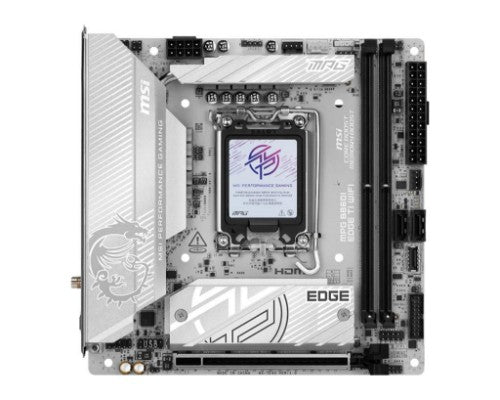

MSI MPG B860I EDGE TI WIFI motherboard Intel B860 LGA 1851 (Socket V1) mini ITX

SKU MPG B860I EDGE TI WIFI
£163.78
£163.78
Excluding taxes
LGA 1851, INTEL B860, 2x DDR5 UDIMM max 128Gb, 1x HDMI, 1x Type-C DisplayPort, 1x PCI-E x16 slot, 2x M.2, 2x SATA 6G, Thunderbolt4, Wi-Fi 7, Bluetooth 5.4

Description

MPG B860I EDGE TI WIFI is a mini-ITX B860 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt™ 4, PCIe 5.0 connecitvity. It is definetly the best B860 mini-ITX motherboard for Intel Core Ultra processors.

Specifications

Internal I/O
Number of M.2 (M) slots 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Front panel connector Yes
Audio connector Yes
Supported storage drive interfaces M.2, SATA
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
mSATA ports quantity 0
TPM connector Yes
S/PDIF out connector Yes
Power fan connector Yes
Number of SATA connectors 0
Number of SATA III connectors 2
Number of SATA II connectors 0
CPU fan connector Yes
Chassis intrusion connector Yes
RGB LED pin header Yes
Number of CPU fan connectors 1
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel B860
On-board graphics card No
HDMI version 2.1
Motherboard form factor mini ITX
Component for PC
Audio
Audio output channels 7.1 channels
Performance
Supported storage drive types HDD & SSD
Motherboard chipset family Intel
Motherboard chipset Intel B860
RAID levels 0, 1
Audio output channels 7.1 channels
Motherboard form factor mini ITX
Component for PC
Expansion card interfaces
Audio connector Yes
Processor
Processor manufacturer Intel
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Maximum internal memory 128 GB
Unbuffered memory Yes
ECC сompatibility Non-ECC
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA
RAID levels 0, 1
RAID support Yes
Graphics
On-board graphics card No

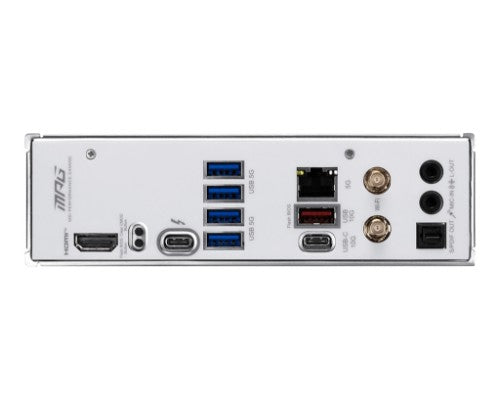

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Thunderbolt ports quantity 1
Microphone in Yes
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type 5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.4
Top Wi-Fi standard Wi-Fi 7 (802.11be)
WLAN controller model Killer Wi-Fi BE1750x
Features
Power source type ATX
Motherboard chipset family Intel
Motherboard chipset Intel B860
Audio output channels 7.1 channels
Motherboard form factor mini ITX
Component for PC
Product colour White
Expansion slots
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
1st M.2 highest PCI Express generation 5.0
2nd M.2 highest PCI Express generation 4.0
BIOS
Clear CMOS button Yes
Power
Power source type ATX
Weight & dimensions
Width 170 mm
Depth 170 mm
Packaging content
Cables included SATA
Screws included Yes
Antenna included Yes
Other features
mSATA ports quantity 0
