Synology

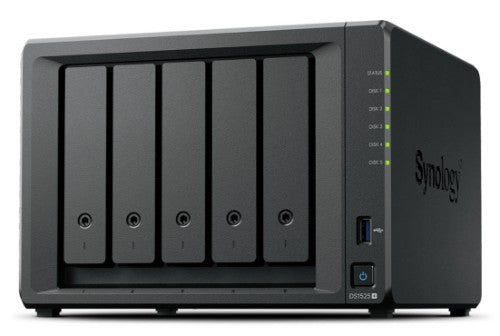

Synology DiskStation DS1525+ NAS Ryzen Embedded V1500B 8 GB DDR4 60 TB HDD Black

SKU DS1525+/60TB-HAT5300
£3,753.18
£3,753.18
Excluding taxes
Quad-core AMD Ryzen V1500B 2.2 GHz, 8 GB DDR4 ECC SODIMM (max 32Gb), 2x RJ-45, 2x USB 3.2, 1x PCIe Gen3 x2, 120W, 166 x 230 x 223 mm + Synology HAT5300 Enterprise HDD 60TB

Description

null

Specifications

Storage
Total installed storage capacity 60 TB
Storage drives installed Yes
Installed storage drive type HDD
Supported storage drive types HDD & SSD
Number of storage drives supported 15
Maximum supported storage capacity 300 TB
Hot-swap drive bays Yes
RAID support Yes
Supported file systems BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Supported storage drive interfaces M.2, Serial ATA
Storage drive sizes supported 3.5,M.2,2.5
Number of M.2 (M & B) slots 2
Processor
Processor generation AMD Ryzen Embedded V1000 Series
Processor manufacturer AMD
Processor threads 8
Processor frequency 2.2 GHz
Processor family Ryzen Embedded
Processor model V1500B
Processor cores 4
Memory
Internal memory type DDR4
Internal memory 8 GB
Maximum RAM supported 32 GB
Memory slots 2
Memory form factor SO-DIMM
ECC Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 2500 Mbit/s
Wake-on-LAN ready Yes
Ports & interfaces
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 2
Hard drive
RAID support Yes
Supported file systems BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Design
Fan diameter 2 9.2 cm
Cooling type Active
Fan diameter 9.2 cm
Drive bay locking Yes
Product colour Black
Number of fans 2 fan(s)
LED indicators Yes
Technical details
Type NAS
Device class Home & Home Office
Backup function Yes
Backup features Cloud, iSCSI LUN
Product colour Black
Number of users 1024 user(s)
Noise level 22.6 dB
Multilingual support Yes
LED indicators Yes
Number of fans 2 fan(s)
Warranty period 3 year(s)
Compliance certificates RoHS
Performance
System log Yes
Browser supported Chrome,Firefox,Edge,Safari
Type NAS
Device class Home & Home Office
Backup function Yes
Backup features Cloud, iSCSI LUN
On/off switch Yes
Web-based management Yes
Number of users 1024 user(s)
Noise level 22.6 dB
Multilingual support Yes
Access Control List (ACL) Yes
Snapshot Yes
Cooling
Cooling type Active
Fan diameter 9.2 cm
Number of fans 2 fan(s)
Security
Drive bay locking Yes
Access Control List (ACL) Yes
Management features
On/off switch Yes
Web-based management Yes
Power
Power consumption (HDD standby) 13.63 W
Power supply location External
Power supply unit (PSU) capacity 120 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 44.56 W
External power adapter Yes
Weight & dimensions
Width 230 mm
Depth 223 mm
Height 166 mm
Weight 2.67 kg
Packaging content
External power adapter Yes
Cables included AC, LAN (RJ-45)
Power cables quantity 1
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 5000 m
Certificates
Certification FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Packaging data
Cables included AC, LAN (RJ-45)
Other features
Certification FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty period 3 year(s)
Compliance certificates RoHS
