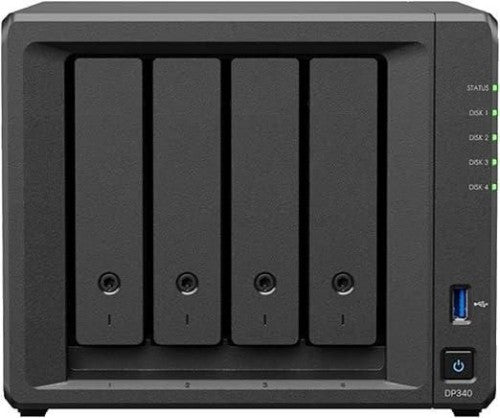

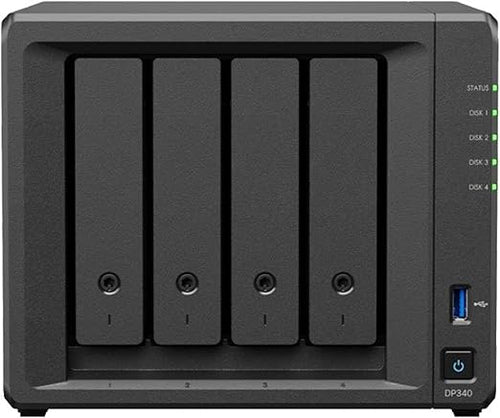

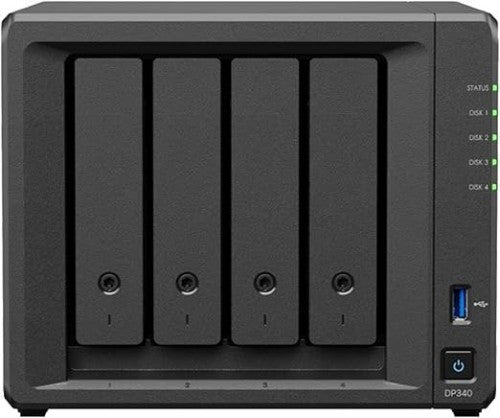

Synology DP340 NAS/storage server Desktop R1600 16 GB 32 TB HDD Black

ActiveProtect appliance DP320, 4 x 8 TB HDD+2 x 400 GB SSD, AMD R1600, 5.2 kg

Description

Cyber-resilient Data Protection
Solution for Endpoints
The Synology ActiveProtect appliance DP340 is a data protection solution that comes preconfigured with hardware that runs ActiveProtect Manager, an operating system designed specifically for backup purposes. With its ability to perform backups, restore, deduplicate, replicate, and manage while ensuring security, the DP340 is an ideal backup server for your small and medium endpoints. It seamlessly integrates all current and future workloads across multiple sites into clusters, enabling centralized management through a single platform. With immutability, air-gapped backups, and access control, the DP340 protects against ransomware attacks, and secures all your data.

Quick and seamless deployment
Essential configuration such as disk partitioning and raid array setup will be automatically completed, making deployment fast and effortless so that you can start protecting your data immediately.

Protect workloads with specified policies
Safeguard all your workloads, including VMware vSphere, Microsoft Hyper-V, Windows, macOS, Linux, NetApp ONTAP, Nutanix Files, Microsoft 365 services, Oracle Database, and Microsoft SQL server. Establish policies for companies to meet SLA requirements, and automate data protection by detecting existing and future workloads, ensuring that the workloads are secured under the appropriate policies. View, modify, and manage policies with ease.

Reliable backup and flexible recovery
The DP340 supports self-healing functionality with continuous detection of silent data corruption through Btrfs checksum. It ensures zero errors by repairing corrupt data via RAID technology. To verify the recoverability of backup data, disaster recovery drills can be regularly performed in a sandboxed environment without affecting your primary production site. Backup verification is also available, automatically generating recovery drill videos for auditing purposes. In the event of a disaster, data can be flexibly restored based on your Recovery Time Objectives (RTO) via entire machine restoration, file-level recovery, physical-to-virtual (P2V), or virtual-to-virtual (V2V) methods to restore data to the designated location.

Uncompromised ransomware protection
To prevent ransomware attacks, the DP340 protects data backups and backup copies with immutability and write-once-read-many (WORM) storage to ensure that no one can modify data that has been backed up during the specified retention period. Additionally, it integrates encryption capabilities, enabling data to be encrypted locally before being backed up to remote destinations. To further enhance security, you can also isolate the remote environment using the air-gap feature.

Optimized backup efficiency
The DP340 optimizes storage space allocation via hardware and software integration. By leveraging SSD cache to store backup-related metadata, optimizing data organization, and consolidating multiple files into a single image, it accelerates data processing. Both backups and backup copies utilize global source-side deduplication, as it compares data at the source and only transmits non-duplicate data to save bandwidth and storage space.

Data security at its core
The DP340's security mechanism is based on the principle of least-privilege authentication and network protection architecture. This mechanism only allows authorized personnel to access data, restricts access to specific devices, and limits access to the backup infrastructure during designated times to ensure data security.
• For authorized personnel: Active Directory, LDAP, and SAML 2.0 integration enables enterprises to use existing SSO with MFA and granular permissions to enhance access control.
• For devices: Firewall settings can be configured to only allow access from devices within specified IP ranges and subnets. The built-in management port is an isolated interface dedicated for management purposes. It is separate from data flow to reduce security risks.
• Enhanced isolation: Secure your remote backup infrastructure via air-gapped solutions to achieve network or physical isolation. Limit network access to specified times or turn your devices on or off.

Specifications

Storage
Total installed storage capacity	32 TB
Storage drives installed	Yes
Installed storage drive type	HDD
Number of storage drives installed	4
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Maximum supported storage capacity	14.5 TB
Storage drive interface	Serial ATA
Storage drive capacity	8 TB
RAID support	Yes
Processor
Processor manufacturer	AMD
Processor model	R1600
Memory
Internal memory	16 GB
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
Hard drive
RAID support	Yes
Design
Cooling type	Active
Drive bay locking	Yes
Cable lock slot type	Kensington
Product colour	Black
Number of fans	2 fan(s)
LED indicators	Status
Chassis type	Desktop
Cable lock slot	Yes
Technical details
Type	NAS
Backup function	Yes
Product colour	Black
LED indicators	Status
Chassis type	Desktop
Number of fans	2 fan(s)
Performance
Type	NAS
Backup function	Yes
Reset button	Yes
Cooling
Cooling type	Active
Number of fans	2 fan(s)
Security
Drive bay locking	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
Reset button	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35.51 W
External power adapter	Yes
Weight & dimensions
Width	199 mm
Depth	223 mm
Height	166 mm
Weight	5.2 kg
Packaging content
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	8 - 80%
Packaging data
Cables included	AC, LAN (RJ-45)
