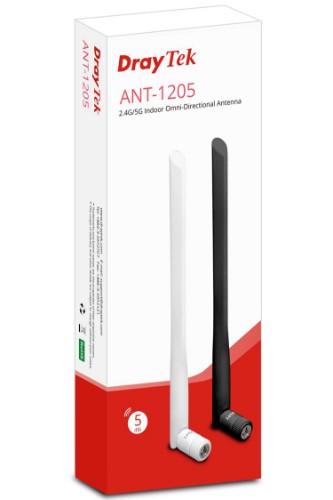

Draytek ANT-1205 network antenna Omni-directional antenna RP-SMA 5 dBi

Key Features

• High-Gain Dual-Band Aerials
• Set of 2 Antennas
• Available in white or black
• Can improve range and coverage of wireless signal
• Suitable for all DrayTek routers & access Points
• Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
• Frequency Range : 2400-2500Mhz & 5150-5850Mhz
• 4.5dBi Gain at 5.8Ghz
• 5dBi Gain at 2.4Ghz
• Connector: RP-SMA
• Suitable for indoor use only
• Optional magnetic/extension base (ANT-BAS1)

Description

High-Gain Dual-Band Antenna Pack
The DrayTek ANT-1205 is a replacement aerial (antenna) for any DrayTek router or wireless access point. It provides up to a 5dBi gain (vs. the 2 or 3 dBi standard aerial supplied with the product).

The ANT-1205 can increase coverage in your environment, creating a stronger signal for your WiFi coverage. A high-gain aerial achieves this by creating a narrower and therefore more concentrated radiation pattern. It is still an omnidirectional aerial, i.e. signal radiates in all directions (360 degrees) perpendicular to the aerial's length.

The ANT-1205 is supplied as a pair of antennas, ideal for most DrayTek wireless access points and wireless routers.
The ANT-1205 is a dual band aerial so can be used for either 2.4Ghz or 5.8Ghz operation, or both simultaneously. It is also suitable for 802.11ac operation (5.8Ghz). The aerial can tilt at its base to allow for optimum coverage/spread, or to allow for router wall mounting.

Instead of mounting the aerials on the back of your router directly, you can use an optional magnetic base (Part Code: ANT-BAS1) - useful if your router is in a rack or to get the best aerial position. The optional base can be wall mounted using suitable adhesive pads (e.g. 3M Command Strips).

Key Features:

• High-Gain Dual-Band Aerials
• Set of 2 Antennas
• Can improve range and coverage of wireless signal
• Suitable for all DrayTek routers & access Points
• Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
• Frequency Range : 2400-2500Mhz & 5150-5850Mhz
• 4.5dBi Gain at 5.8Ghz
• 5dBi Gain at 2.4Ghz
• Connector: RP-SMA
• Suitable for indoor use only

Specifications
