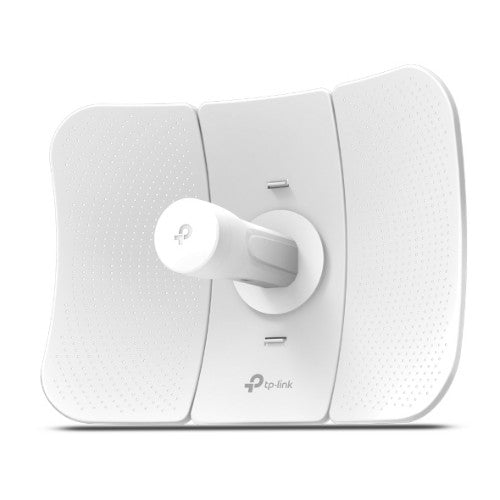

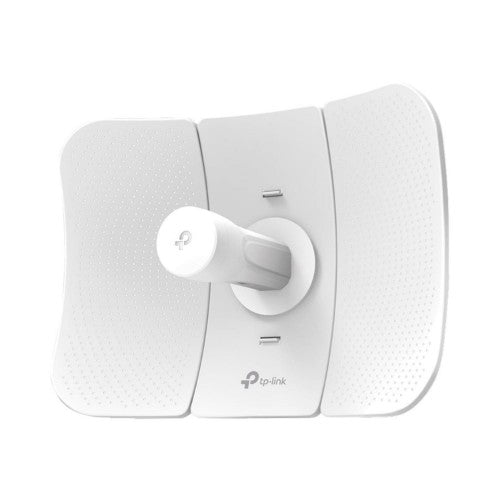

TP-Link CPE605 network antenna 23 dBi

150Mbps, 5GHz, 23dBi, 64MB DDR2, 350x255x207 mm

Key Features

• Up to 150Mbps on 5GHz wireless data rates
• 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
• TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

Description

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

Professional-standard 23dBi Directional
Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics and retail.

Pharos Control – Centralized Management System
CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.

Specifications

Performance
Built-in processor	Yes
Processor model	Atheros MIPS 74Kc
Processor frequency	560 MHz
Internal memory type	DDR2
Internal memory	64 MB
Flash memory	8 MB
Antenna gain level (max)	23 dBi
Networking standards	IEEE 802.11a, IEEE 802.11n
Frequency band	5 GHz
Features
Housing material	Plastic
Product colour	White
Antenna gain level (max)	23 dBi
Networking standards	IEEE 802.11a, IEEE 802.11n
Frequency band	5 GHz
Certification	CE, FCC
Power
Input voltage	16 - 27 V
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Technical details
Antenna gain level (max)	23 dBi
Frequency band	5 GHz
Harmonized System (HS) code	85177100
Compliance certificates	RoHS
Network
Networking standards	IEEE 802.11a, IEEE 802.11n
Colour
Product colour	White
Packaging content
Quick installation guide	Yes
Logistics data
Harmonized System (HS) code	85177100
