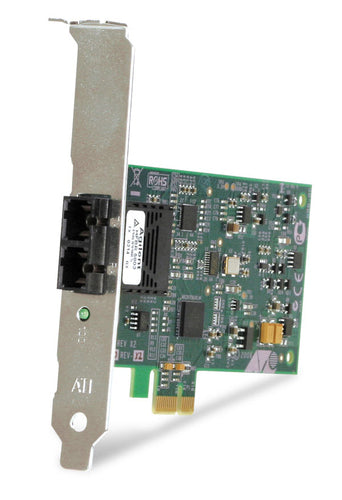

Allied Telesis 100FX Desktop PCI-e Fiber Network Adapter Card w/PCI Express, Federal & Government 100 Mbit/s

100FX Desktop PCI-e Fiber Network Adapter Card w/PCI Express, Federal & Government

Description

More Bandwidth with PCI-Express Interface

AT-2711FX x1 PCI-Express (PCI-e™) design gives you the maxim possible bandwidth and bus efficiency, other benefits are: capability and Low Power Consumption.

Easy Migration Path for AT-2701FX Users

For the current customers who are using Allied Telesis’ 100Mbps Fiber cards (AT-2701FX), and want to upgrade their systems to PCI-Express, AT-2711FX is the ultimate solution.The customers can continue using their existing 100Mbps Fiber network without adding any more new equipment. For new customers equipped with PCI-Express systems,AT-2711FX gives them the ability to easily build or connect to the Fast Ethernet Fiber networks.

Advanced Manageability

The priority queuing offered by AT-2711FX can help users set up the network based on their own needs.The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the network adapter and check
specific data.

High Reliability

The AT-2711FX Fast Ethernet Fiber Adapter comes with a comprehesive Windows utility that performs detailed tests, diagnostics, and analysis.

Specifications

Ports & interfaces
Connector(s)	ST
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	100 Mbit/s
Technical details
Compliance industry standards	IEEE 802.3u, IEEE 802.1p
Wake-on-LAN ready	Yes
Harmonized System (HS) code	85176990
Network
Wake-on-LAN ready	Yes
Full duplex	Yes
Maximum data transfer rate	100 Mbit/s
Flow control support	Yes
Design
Certification	FCC/EN55022 Class B EN55024 Class B UL1950 CE TUV
System requirements
Compatible operating systems	Windows 2000 Windows XP/2003 (32/64-bit) Linux 2.4.x Netware NDIS2
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	69 mm
Height	121 mm
Weight	50 g
Performance
Wake-on-LAN ready	Yes
Certificates
Certification	FCC/EN55022 Class B EN55024 Class B UL1950 CE TUV
Other features
Compatible operating systems	Windows 2000 Windows XP/2003 (32/64-bit) Linux 2.4.x Netware NDIS2
Compliance industry standards	IEEE 802.3u, IEEE 802.1p
Flow control support	Yes
Connector(s)	ST
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
