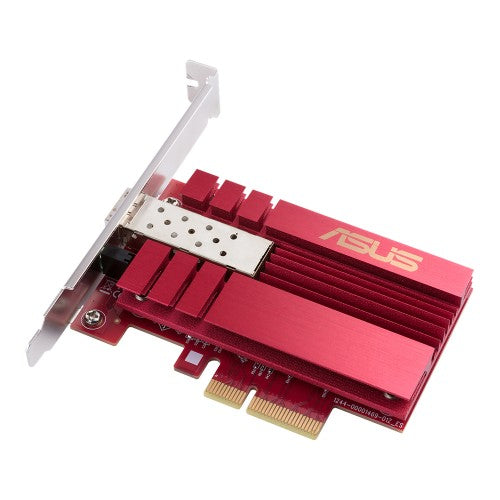

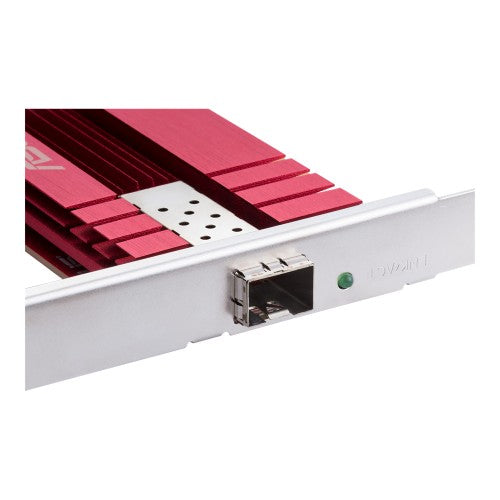

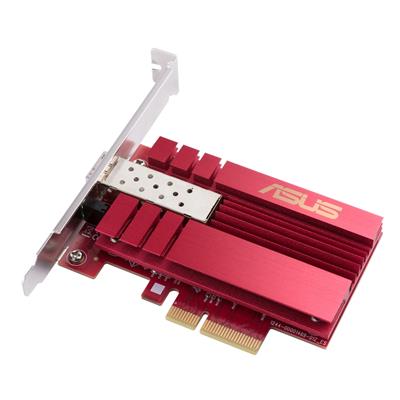

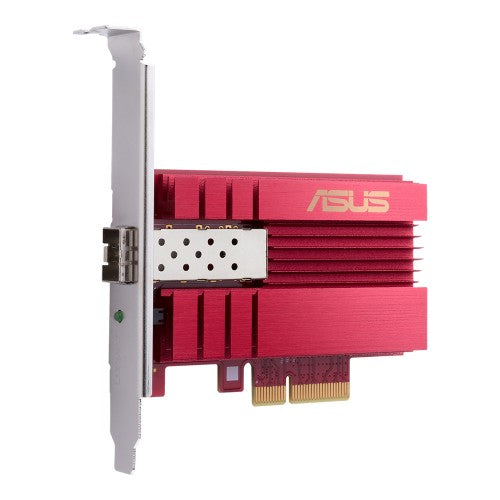

ASUS XG-C100F Internal Fiber 10000 Mbit/s

XG-C100F, 1x 10G SFP+, IEEE 802.3ae, IEEE 802.1p, IEEE 802.1q, 110g

Key Features

• Hyper-fast 10Gbps speeds – Next-gen speeds up to 10X faster than gigabit Ethernet for quick file transfers, smooth 4K streaming and low-latency gaming
• Go-further fiber optics – The latest technology for high-speed transmissions over much-greater distances than copper cables
• Stylish built-in cooling – Stylish aluminum heatsink efficiently expels heat for reliable non-stop operation
• Automatic prioritization – Built-in QoS technology automatically boosts bandwidth to important streams or games
• Direct-attach copper (DAC)– With SPF+ Cage, DAC connections are also compatible

Description

Hyper-Fast 10Gbps Networking
ASUS XG-C100F enables up to hyper-fast 10Gbps networking, over fiber-optic or DAC cables. Just slide it into a PCI Express® 2.0/3.0 x4 slot to enjoy SPF+ connections that are up to 10X faster than gigabit Ethernet — perfect for large file transfers, 4K streaming and low-latency gaming.

Go Further with Fiber Optics
XG-C100F is compatible the latest fiber-optic networking technology. This enables high-speed, high-bandwidth transmissions to travel distances that are far greater than possible over traditional RJ-45 type copper transmission- Ideal for power users, small enterprise and data center.

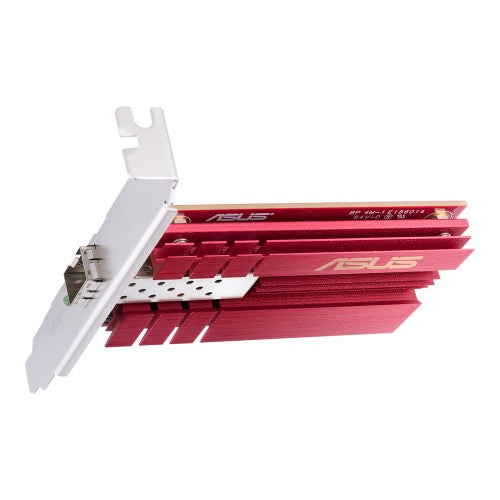

Stylish Cooling Heatsink
An efficient aluminum heatsink keeps XG-C100F cool during high-performance applications, and adds a touch of style that elevates the card's outlook above the network-interface-card crowd.

Prioritize performance, automatically
Built-in Quality-of-Service (QoS) technology automatically prioritizes bandwidth for your most important applications. Whether you're transferring loads of files, streaming 4K media or engaging in online gaming, it's easy to configure XG-C100F to ensure the important packets get through swiftly and smoothly.

Specifications

Ports & interfaces
Internal	Yes
Fiber ports quantity	1
Fiber optic connector	SFP+
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Red
Plug and Play	Yes
Harmonized System (HS) code	85176990
Network
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN	Yes
Cabling technology	10GBase-T
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ae
Ethernet LAN data rates	10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Design
Product colour	Red
Plug and Play	Yes
Internal	Yes
LED indicators	Yes
Component for	PC
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Weight & dimensions
Width	113.3 mm
Depth	120.5 mm
Height	21.6 mm
Weight	110 g
Packaging content
Manual	Yes
Performance
Plug and Play	Yes
Packaging data
Manual	Yes
Other features
Manual	Yes
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
