ATEN

ATEN KA7183 network card Ethernet

SKU KA7183
£225.40
£200.67
£225.40
£200.67
Excluding taxes

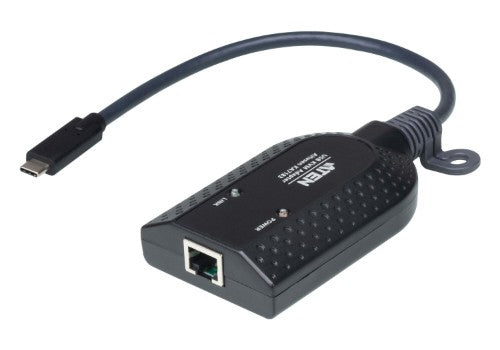

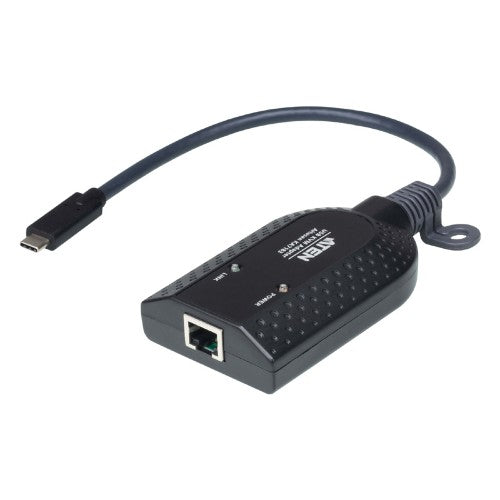

USB-C Virtual Media KVM Adapter

Key Features

  • Connects any Cat 5 KVM switch to a target computer via a single USB-C
  • Superior video quality – supports Full HD resolution of up to 1920 x 1200
  • Auto Signal Compensation (ASC) – no DIP switch setting needed for different distances
  • Keyboard and mouse emulation – keeps the server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port

Description

The KA7183 KVM Adapter empowers any Cat 5 KVM switch* to connect to and manage a USB-C compatible target computer. Via just a single USB-C plug, it is able to connect a target computer while fulfilling keyboard, video, mouse, and virtual media or smart card / CAC reader functions.

Advanced features provided by KA7183 include superior signal compensation and delay skew technologies for greatly enhanced video quality, as well as its user-friendly, compact and lightweight design.

Specifications

Ports & interfaces
Internal No
Ethernet LAN (RJ-45) ports 1
Interface Ethernet
Host interface USB Type-C
Connectivity technology Wired
USB connector form factor Straight
Technical details
Product colour Black
Network
Ethernet LAN Yes
Design
Product colour Black
Internal No
LED indicators Yes
Power
Output voltage 5 V
Power consumption (typical) 2.61 W
Indication
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 56 mm
Depth 91 mm
Height 21.2 mm
Weight 70 g
