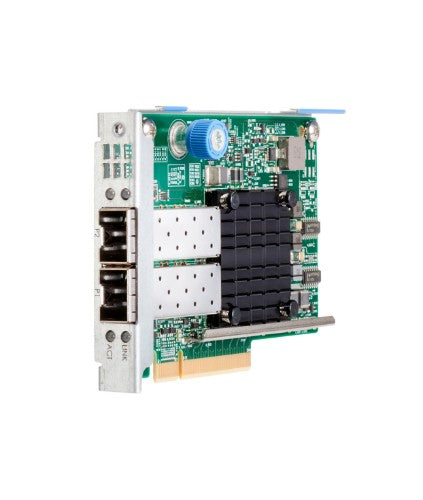

HPE Ethernet 10Gb 2-port 537FLR-SFP+ Adapter

Ethernet 10Gb 2-port 537FLR-SFP+ Adapter

Reasons To Buy

Improve Application Performance

HPE Ethernet 10Gb 2-port 537SFP+ FLR Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
Speed up packet processing to service more I/O requests by utilizing Data Plane Development Kit (DPDK) feature.

Increase I/O Bandwidth for Workload-Intensive Applications

HPE Ethernet 10Gb 2-port 537SFP+ FLR Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.

Description

Do you need an adapter that is big on capability and small on CPU utilization? The HPE Ethernet 10Gb 2-port 537SFP+ FLR Adapter has been designed to efficiently deliver high performance, low latency an minimal CPU utilization by offloading many I/O processing within the adapter. Low latency dramatically improves application performance and frees up CPU resources in the host allowing it to do tasks that are more important.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP+
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10 Mbit/s
Technical details
Compatible products	HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Chassis type	FlexLOM
Weight (imperial)	0.251 kg (0.553 lbs)
Harmonized System (HS) code	85176990
Network
Networking standards	IEEE 1588, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.2x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x
Maximum data transfer rate	10 Mbit/s
Design
Compatible products	HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Internal	Yes
Component for	Server
Software
Linux operating systems supported	Yes
Other operating systems supported	Yes
Power
Power consumption (typical)	9.084 W
System requirements
Server operating systems supported	Windows Server 2012, Windows Server 2016, Windows Server 2019
Linux operating systems supported	Yes
Other operating systems supported	Yes
Compatible operating systems	None
Weight & dimensions
Width	246.9 mm
Depth	214.4 mm
Height	61.7 mm
Weight	250 g
Performance
Server operating systems supported	Windows Server 2012, Windows Server 2016, Windows Server 2019
Compatible products	HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Linux operating systems supported	Yes
Other operating systems supported	Yes
Other features
Compatible operating systems	None
Cable type	10 Gb - Active Optical Cable (AOC), 10 Gb - Direct Attach Copper Cable (DAC)
Ports quantity	2
Performance management	HPE iLO 4 and HPE Advanced Power Manager
Chassis type	FlexLOM
Weight (imperial)	0.251 kg (0.553 lbs)
Dimensions (W x D x H) (imperial)	214.4 x 246.9 x 61.7 mm (8.44 x 9.72 x 2.43")
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
