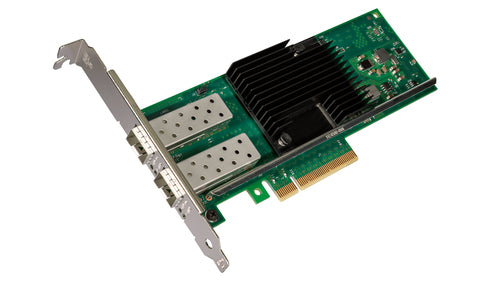

Intel X710DA2 network card Internal Fiber 10000 Mbit/s

Intel Ethernet Converged Network Adapter X710DA2

Description

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP+
Ethernet LAN (RJ-45) ports	2
PCI Card form factor	Full-height (low-profile)
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Network
Chipset	X710-AM2
VLAN tagging	Yes
Ethernet interface type	Gigabit Ethernet, 10 Gigabit Ethernet
iSCSI support	Yes
Ethernet LAN	Yes
Networking standards	IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
Supported network protocols	TCP, UDP, IP
Maximum operating distance	10 m
LAN controller	Intel® X710
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-SR
Ethernet LAN data rates	1000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Management protocols	PXE, SNMP, RMON
Flow control support	Yes
Technical details
Interface type	PCIe v3.0 (8.0 GT/s)
Product colour	Black, Green
Speed & slot width	8.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
PCI Card form factor	Full-height (low-profile)
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel® Virtualization Technology (Intel® VT)	VT-c
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Trusted Execution Technology	No
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	Yes
Embedded options available	No
Storage Over Ethernet	iSCSI, NFS
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Product type	Network Interface Card
Processor family	700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Status	Launched
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/641693
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q4'14
Last change	64826824
Design
Product colour	Black, Green
Chipset	X710-AM2
Certification	FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Internal	Yes
PCI Card form factor	Full-height (low-profile)
LED indicators	Yes
Product family	Intel 10 Gigabit server adapter
Product series	700 Series Network Adapters (up to 40GbE)
Product codename	Fortville
Software
Linux operating systems supported	RedHat EL Linux 6.0
Other operating systems supported	FreeBSD
Power
Power consumption (typical)	4.5 W
Indication
LED indicators	Yes
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Linux operating systems supported	RedHat EL Linux 6.0
Other operating systems supported	FreeBSD
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	35 - 90%
Weight & dimensions
Width	68.6 mm
Depth	167.1 mm
Protocols
Supported network protocols	TCP, UDP, IP
Management protocols	PXE, SNMP, RMON
Performance
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Linux operating systems supported	RedHat EL Linux 6.0
Other operating systems supported	FreeBSD
Speed & slot width	8.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel® Virtualization Technology (Intel® VT)	VT-c
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	Yes
Certificates
Certification	FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Other features
Chipset	X710-AM2
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Product type	Network Interface Card
Processor family	700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Interface type	PCIe v3.0 (8.0 GT/s)
Cable type	SFP+ Direct Attached Twinaxial Cabling up to 10m
Speed & slot width	8.0 GT/s, x8 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
Management protocols	PXE, SNMP, RMON
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel® Virtualization Technology (Intel® VT)	VT-c
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Trusted Execution Technology	No
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Intel Data Direct I/O Technology	Yes
Flow control support	Yes
Embedded options available	No
Storage Over Ethernet	iSCSI, NFS
Status	Launched
Product brief URL	https://cdrdv2.intel.com/v1/dl/getContent/641693
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q4'14
Last change	64826824
Product family	Intel 10 Gigabit server adapter
Product series	700 Series Network Adapters (up to 40GbE)
Product codename	Fortville
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Controller type	Intel® Ethernet Controller X710
Cabling type	SFP+ Direct Attached Twinaxial Cabling up to 10m
Bracket height	Low-Profile (LP) / Full-Height (FH)
Target market	Artificial Intelligence, High Performance Computing
Logistics data
Harmonized System (HS) code	85176990
