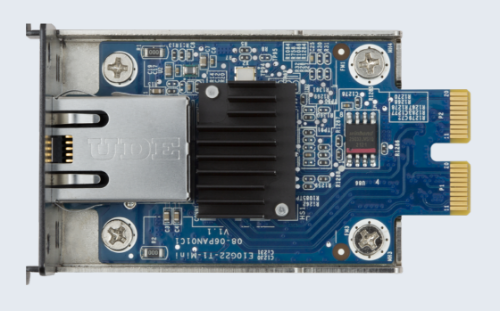

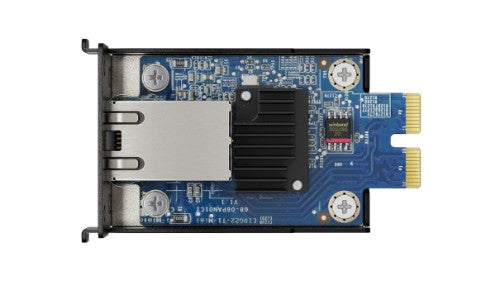

Synology E10G22-T1-Mini Internal Ethernet 10000 Mbit/s

10GbE RJ-45 network upgrade module

Description

10GbE RJ-45 network upgrade module for compact Synology servers.

Maximize bandwidth to tackle heavy-duty applications

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Throughput

Expand system capabilities with 10GbE connectivity

Flexibility

Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility

Designed for maximum performance and reliability in Synology systems.

Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly add bandwidth availability in Synology servers featuring compact-size enclosures.

Multi-gig support

Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	10000 Mbit/s
Wireless LAN features
Wi-Fi	No
Technical details
Compatible products	Synology RS422+, DS1522+
Interface type	PCIe 3.0 x2
Product colour	Blue
Network
Ethernet interface type	10 Gigabit Ethernet
Jumbo frames	9000
Wi-Fi	No
Ethernet LAN	Yes
Cabling technology	10GBase-T
Networking standards	IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Jumbo frames support	Yes
Full duplex	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Auto-negotiation	Yes
Design
Compatible products	Synology RS422+, DS1522+
Product colour	Blue
Internal	Yes
Component for	NAS/storage server
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	45.4 mm
Depth	75.7 mm
Height	26.4 mm
Performance
Compatible products	Synology RS422+, DS1522+
Auto-negotiation	Yes
Other features
Jumbo frames	9000
Interface type	PCIe 3.0 x2
