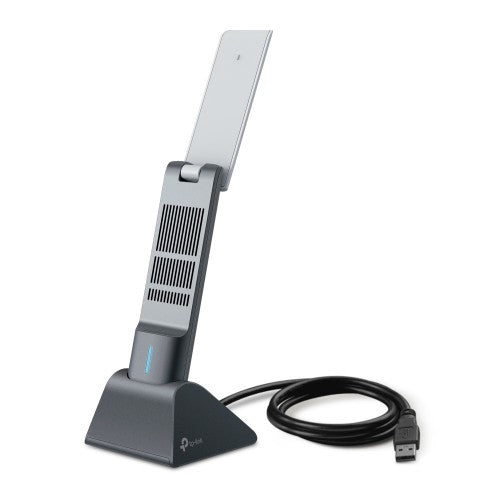

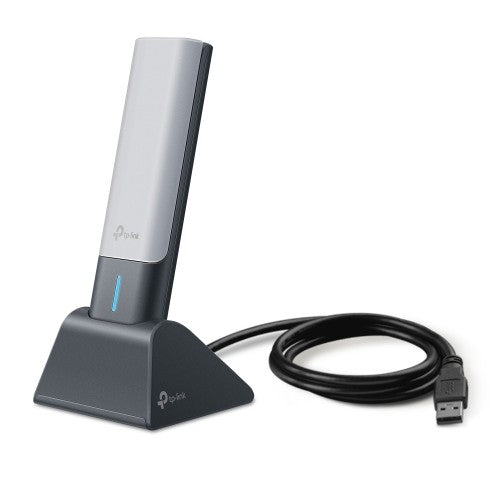

TP-Link Archer AX3000 High Gain Wireless USB Adapter

2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 802.11a/b/g/n/ac/, 30.5 × 14.8 × 111.7 mm

Key Features

• Fast WiFi 6 - Break the gigabit barrier with speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity
• Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming
• Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC
• Improved Security - WPA3 provides the latest security enhancements for personal password protection
• SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0

Description

Ultra-Fast WiFi 6,
Brand-New Upgrade Adapter
AX3000 High Gain Wireless USB Adapter

Expand Your Ultimate Wi-Fi 6 Experience
Armed with WiFi 6 technology, Archer TX50UH adapter is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Greater Coverage and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Lower Latency, Higher Efficiency, and Less Congestion

MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX50UH ideal for HD streaming, online gaming and large file downloads.

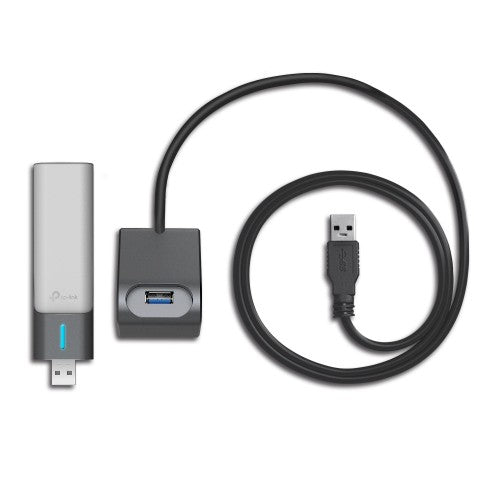

Easy Use with a Flexible Design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX50UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Interface	WLAN
Host interface	USB
Connectivity technology	Wired & Wireless
Bandwidth
Maximum data transfer rate	3000 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,574,1733,2402 Mbit/s
Antenna
Antenna	Yes
Frequency range	2.4 - 5 GHz
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Security algorithms	WEP, WPA, WPA2, WPA2-PSK, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WLAN data transfer rates supported	11,54,300,574,1733,2402 Mbit/s
Frequency range	2.4 - 5 GHz
Maximum data transfer rate	3000 Mbit/s
Design
Product colour	Black
Antenna	Yes
Internal	No
LED indicators	Yes
Component for	PC/Laptop
Antenna design	Internal
Software
Windows operating systems supported	Windows 10, Windows 11
Indication
LED indicators	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	30.5 mm
Depth	14.8 mm
Height	111.7 mm
Security
Security algorithms	WEP, WPA, WPA2, WPA2-PSK, WPA3
Packaging content
Quick installation guide	Yes
Cables included	USB
Performance
Security algorithms	WEP, WPA, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10, Windows 11
Packaging data
Quick installation guide	Yes
Cables included	USB
