TP-Link MA70XE network card Internal WLAN / Bluetooth 1201 Mbit/s

1201Mbps, 5/2.4GHz, BT, PCIe

Key Features

• Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
• Bluetooth 5.4 — The latest Bluetooth technology achieves faster speeds and broader coverage
• Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards
• Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)

Description

Arm Your PC with WiFi 6
Armed with the IEEE 802.11ax wireless standard, MA70XE offers strong, uninterrupted WiFi. It seamlessly handles all your online activities thanks to its high-speed WiFi (up to 1201Mbps on the 5 GHz band and 574 Mbps on 2.4 GHz).

Lower Latency, Higher Experiences
Equipped with WiFi 6, MA70XE delivers ultra-low latency, lag-free streaming, and uninterrupted connectivity for smooth real-time gaming and immersive VR experiences.

Super Stable Bluetooth 5.4
MA70XE upgrades your PC with cutting-edge Bluetooth 5.4, designed for enhanced stability, broader compatibility, and faster transmission speeds. Simply connect your Bluetooth devices to your computer and enjoy with ease.

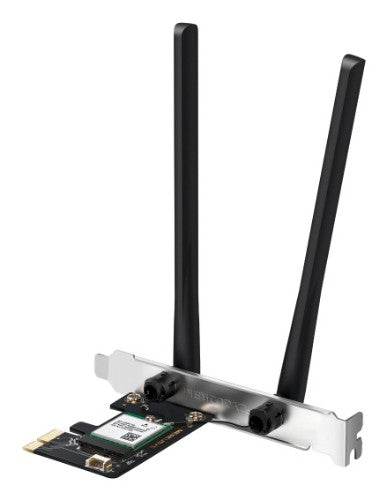

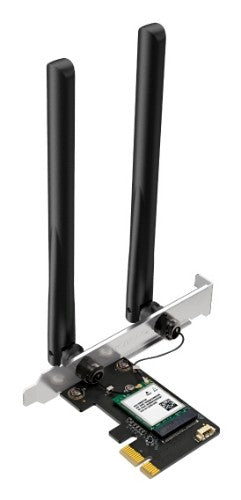

High-Gain Antennas for
Broader Coverage
Two strong signal-booster high-gain antennas significantly increase the range of the currently available WiFi, providing a quick, seamless online experience from a greater distance.

Specifications

Ports & interfaces
Internal	Yes
Interface	WLAN / Bluetooth
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1201 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Antenna
Antenna	Yes
Antenna type	2x2
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Security algorithms	WPA, WPA-PSK, WPA2-PSK, WPA3-SAE
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	1201 Mbit/s
Design
Antenna	Yes
Internal	Yes
Antenna type	2x2
Antenna direction type	Omni-directional
Component for	PC
Antenna design	External
Weight & dimensions
Width	226.3 mm
Depth	120.8 mm
Height	21.5 mm
Security
Security algorithms	WPA, WPA-PSK, WPA2-PSK, WPA3-SAE
Performance
Security algorithms	WPA, WPA-PSK, WPA2-PSK, WPA3-SAE
Other features
Antenna type	2x2
