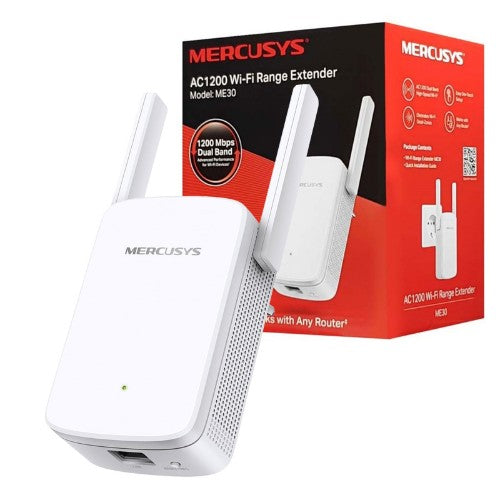

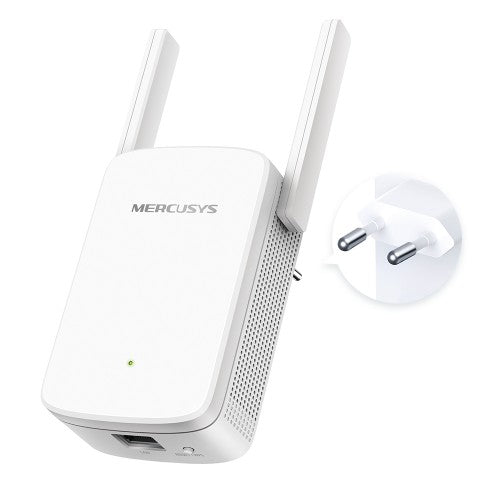

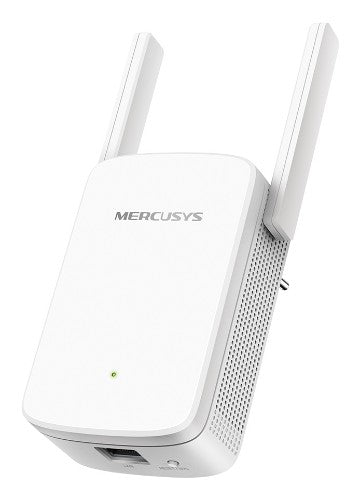

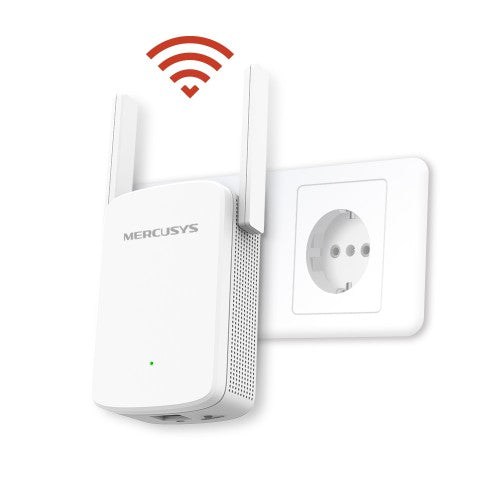

Mercusys AC1200 Wi-Fi Range Extender

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz, 1× 10/100Mbps RJ45 Port, 112 x 84.7 x 39 mm

Key Features

• Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
• AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps
• Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
• Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
• Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
• Works with Any Router or Wireless Access Point

Description

Boost WiFi Coverage
with Dual Band Speed
AC1200 Wi-Fi Range Extender

Extend WiFi to Where You Need It Most

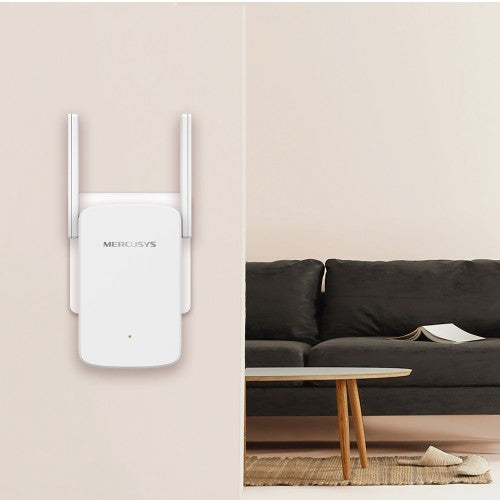

The ME30 wall-mounted range extender with adjustable high-gain antennas easily expands your Wi-Fi router's coverage, letting you finally eliminate Wi-Fi dead zones from your home. Enjoy the high speed expansion WiFi wherever you need.

AC1200 High-Speed Wi-Fi
Enjoy a fast extended Wi-Fi anywhere up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz), ideal for 4K streaming and online gaming.

Adaptive Path Selection
The ME30 keeps your network running at top-speed by intelligently choosing the best available route and band for your data.

Smart Signal Indicator
Multicolor LED helps you find the right location for your range extender for the best Wi-Fi extension

Easy One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your Wi-Fi coverage in seconds.
- Step 1：Press the WPS button on your router and the ME30
- Step 2：Relocate the ME30 to the best place with smart signal indicator

Built-In Access Point Mode
ME30 is more than just a WiFi range extender. Connect your wired internet connection to the ME30 via Ethernet cable to turn it into a dual band WiFi access point.

Specifications

Performance
Ethernet LAN data rates	10,100 Mbit/s
Type	Network repeater
Data transfer rate	1200 Mbit/s
WPS push button	Yes
Antenna
Antennas quantity	2
Antenna type	External
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	1200 Mbit/s
Wi-Fi	Yes
Security algorithms	WPA-PSK, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Reset button	Yes
LED indicators	Yes
Certification	CE, RoHS
Product colour	White
Power
Power consumption (typical)	9.2 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	112 mm
Depth	84.7 mm
Height	39 mm
Packaging content
Quick start guide	Yes
Technical details
Reset button	Yes
Antennas quantity	2
Ethernet LAN data rates	10,100 Mbit/s
LED indicators	Yes
Type	Network repeater
Data transfer rate	1200 Mbit/s
WPS push button	Yes
Harmonized System (HS) code	85176990
Colour
Product colour	White
Certificates
Certification	CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
