Mercusys ME80X network extender White 100, 1000 Mbit/s

ME80X AX3000 Wi-Fi 6 Range Extender

Key Features

• Dual Band Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
• Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity
• Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles
• Works with Any Routers – To Extend WiFi to Where You Need It Most.‡
• Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds
• Built-In Access Point Mode – Works as RE mode and AP mode
• Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices

Description

WiFi 6 Takes Your Network to the Next Level
Armed with Wi-Fi 6 , ME80X improves virtually every aspect of your network: speed, efficiency, and capacity.

Extend WiFi to Where You Need It Most

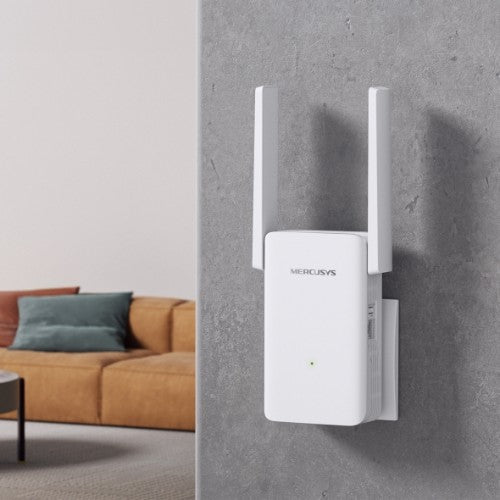

Extend your router’s coverage. This AX3000 range extender, with two adjustable high-gain antennas, boosts WiFi to hard-to-reach areas and is compatible with older WiFi standards (11b/g/n/a/ac) and all connected devices.

Cover Your Whole Home with EasyMesh
ME80X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!

Effortless One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your WiFi coverage in seconds.

Built-In Access Point Mode
ME80X is more than a WiFi range extender. Connect it to your wired internet via Ethernet to transform it into a dual-band WiFi access point.

Control at Your Fingertips
Set up and manage your WiFi through the MERCUSYS app from your smartphone (Android, iOS).

Specifications

Performance
Ethernet LAN data rates	100,1000 Mbit/s
WPS push button	Yes
Antenna
Antennas quantity	2
Antenna type	External
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	2400 Mbit/s
Wi-Fi	Yes
Security algorithms	WEP, WPA, WPA2, WPA3-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Reset button	Yes
Product colour	White
Power
Power consumption (typical)	13 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	100.3 mm
Depth	68.4 mm
Height	138.6 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Technical details
Reset button	Yes
Antennas quantity	2
Ethernet LAN data rates	100,1000 Mbit/s
WPS push button	Yes
Compliance certificates	RoHS
Colour
Product colour	White
Certificates
Compliance certificates	RoHS
