StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged (POEINJ1G90W)

Key Features

• WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS
• 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
• TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input
• ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Description

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The StarTech.com Advantage

Specifications

Performance
Jumbo frames support	Yes
Duplex system	Full
International Protection (IP) code	IP30
Ethernet LAN data rates	10,100,1000 Mbit/s
Type	Network repeater
Maximum transfer distance	100 m
Power over Ethernet (PoE)	Yes
Data transfer rate	1000 Mbit/s
Chipset	Microsemi PD69204
Mean time between failures (MTBF)	540891 h
Auto MDIX IEEE	Yes
Auto-negotiation	Yes
Technical details
Jumbo frames support	Yes
Duplex system	Full
International Protection (IP) code	IP30
Ethernet LAN data rates	10,100,1000 Mbit/s
LED indicators	Yes
Type	Network repeater
Maximum transfer distance	100 m
Power over Ethernet (PoE)	Yes
Data transfer rate	1000 Mbit/s
Chipset	Microsemi PD69204
Auto MDIX IEEE	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Ports & interfaces
Power over Ethernet (PoE) ports quantity	2

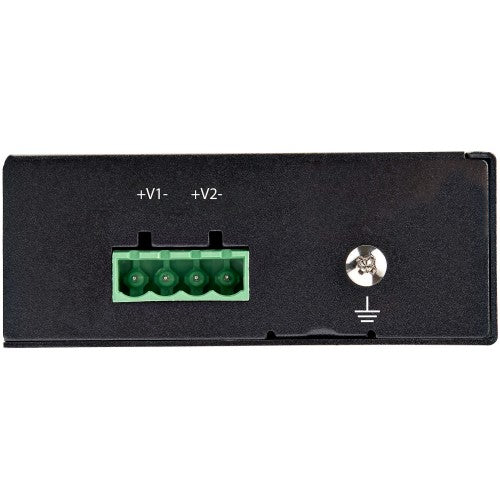

Terminal block port	Yes
Design
Housing material	Aluminium
LED indicators	Yes
Certification	CE, FCC, UL
Product colour	Black
Power
Power plug type	Type N
Power over Ethernet (PoE) voltage range	48 - 56 V
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	90 W
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	32 mm
Depth	82 mm
Height	104 mm
Weight	174 g
Colour
Product colour	Black
Endurance
Mean time between failures (MTBF)	540891 h
Certificates
Certification	CE, FCC, UL
Management features
Supported network protocols (IPv4)	CSMA/CD

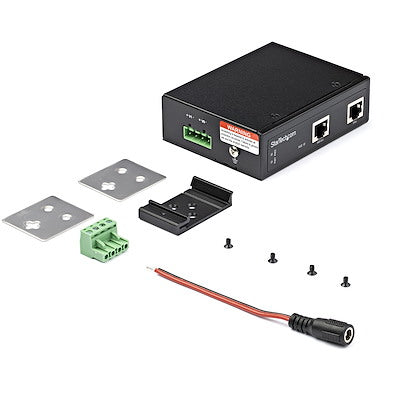

Packaging content
Quick start guide	Yes
Packaging data
Package width	211 mm
Package depth	162 mm
Package height	64 mm
Package weight	416 g
Logistics data
Master (outer) case width	355 mm
Master (outer) case length	345 mm
Master (outer) case height	225 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990
