PLANET POE-171 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

Single-Port 10/100/1000Mbps Ultra PoE Injector (60 Watts)

Key Features

• Interface
• 2-Port RJ-45 interface
• 1-Port
• Data + Power output
• Data input
• 1 DC 52~56V input power socket
• Power over Ethernet
• Ultra Power over Ethernet End-Span/Mid-Span PSE
• IEEE 802.3at/af PoE standard compliant
• Compatible with All IEEE 802.3at/af powered devices
• Supports 56VDC, 60-watt PoE power output at maximum
• Auto-detection of PoE IEEE 802.3at/af equipment and device for possible damage by incorrect installation
• Automatic detection and protection of non–standard Ethernet terminals
• Remote power feeding up to 100 meters
• Hardware
• Compact size metal case
• LED indicators for power LED and PoE In-use LED
• Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at High Power over Ethernet
• IEEE 802.3af Power over Ethernet
• FCC Part 15 Class A, CE

Description

Quick and Easy Gigabit High Power PoE Network Deployment

The POE-171 is a single port ultra Power over Ethernet Injector with maximum up to 60 watts of power output over Ethernet cable. It is designed specifically to fill the demand of growing higher power required network equipment. If the POE-171 co-works with PLANET POE-171S (60-watt IEEE 802.3at PoE splitter), it can offer more PoE applications, such as:

　■ PoE PTZ Speed Dome
　■ Other Network devices that need higher PoE power to work normally
　■ Thin-client
　■ AIO(All-in-One) touch PC
　■ Remote digital signage display


The POE-171 delivers the Ethernet digital data with DC 56V power over the twisted pair cables as an IEEE 802.3at Gigabit High Power over Ethernet Injector, and it supports distance from POE-171 to a PoE device up to 100 meters.


60 watts of Power over 4-Pair UTP

The POE-171 ultra PoE solution uses cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.


Cost-effective and Easy Cabling Installation

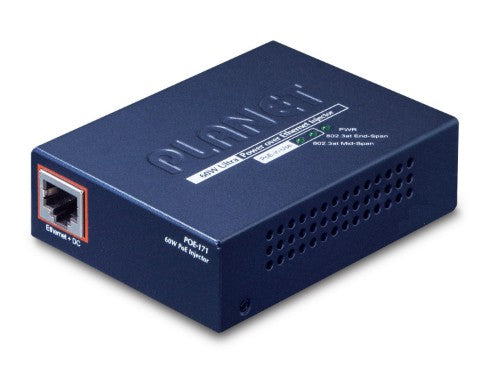

With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-171 is in the compact size housing, and it provides one 52~56V DC input power jacket at its right side, one power LED and two PoE In-use LEDs (802.3at End-span and 802.3at Mid-span) at top side. Two RJ-45 ports -- Ethernet port and Ethernet+DC port -- are at side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-171 is ready to provide high speed network communication and 60-watt ultra power PoE injector functions simultaneously with no need of software configuration.

The POE-171 Ultra PoE Injector is an ideal solution that enables network device with high power demand to be powered directly via the RJ-45 Port interface without the need to install power outlets and electrical cabling.

Specifications

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
Design
Wall mountable	Yes
Product colour	Blue
LED indicators	Yes
Housing material	Metal
Power
Power consumption (max)	65 W
Power supply included	No
Power consumption (typical)	60 W
Input current	1.5 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	54 V
Other features
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	95 mm
Depth	70 mm
Height	26 mm
Weight	237 g
Technical details
Product colour	Blue
Housing material	Metal
Performance
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Logistics data
Harmonized System (HS) code	85176990
