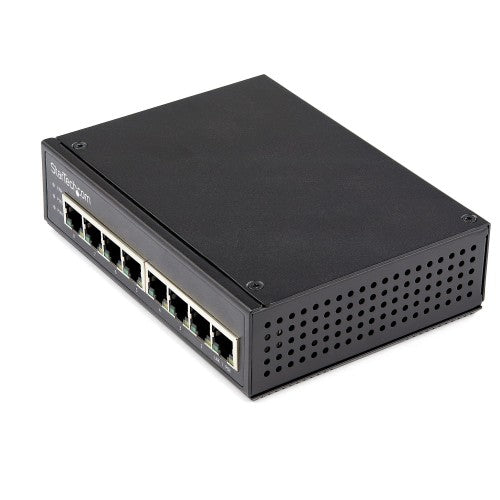

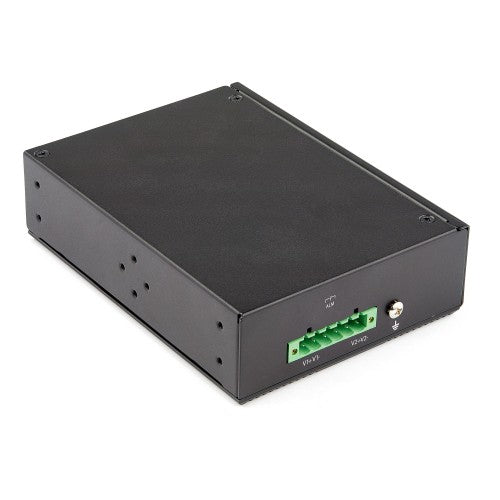

StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C

StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C (IESC1G80UP)

Key Features

• POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
• Use with devices like cameras & access points using Cat 5e/6
• TECH SPECS: 8 port GbE PoE switch

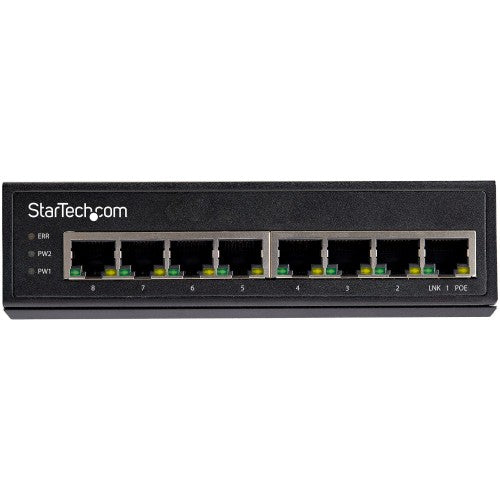

• 8 PoE ports
• IEEE 802.3af / IEEE 802.3at
• 10/100/1000 Mbps

Description

Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 Port

This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

Cameras

Sensors

Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

Operating Temperature Range: -40 C to 75 C

IP-30 rated housing

Vibration, shock, and free-fall standard testing

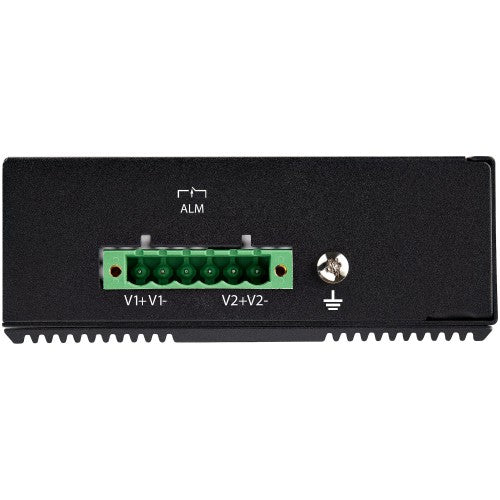

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.

The StarTech.com Advantage

- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- TECH SPECS: 8 port GbE PoE switch

Specifications

Ports & interfaces
Terminal block port	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Technical details
Product colour	Black
Mean time between failures (MTBF)	693764 h
Housing material	Aluminium
Rack mounting	No
Management features
Switch type	Unmanaged
Network
Cable types supported	Cat5e, Cat6
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	9000
Switching capacity	16000 Gbit/s
Jumbo frames support	Yes
Certificates
Certification	CE, FCC, UL, ROhS
Design
Wall mountable	Yes
International Protection (IP) code	IP30
DIN rail mounting	Yes
Product colour	Black
LED indicators	Yes
Housing material	Aluminium
Certification	CE, FCC, UL, ROhS
Rack mounting	No
Performance
Buffer size	128 KB
Mean time between failures (MTBF)	693764 h
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Power
Power consumption (max)	206 W
Surge protection voltage	2 kV
DC input voltage	48 - 56 V
Surge protection	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	200 W
Power over Ethernet (PoE)	Yes
Weight & dimensions
Width	105 mm
Depth	142 mm
Height	39.6 mm
Weight	536 g
Packaging data
Terminal block included	Yes
Quick start guide	Yes
Package width	211 mm
Package depth	162 mm
Package height	64 mm
Package weight	781 g
Logistics data
Master (outer) case width	355 mm
Master (outer) case length	345 mm
Master (outer) case height	225 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990
Other features
Terminal block port	Yes
Packaging content
Terminal block included	Yes
Quick start guide	Yes
