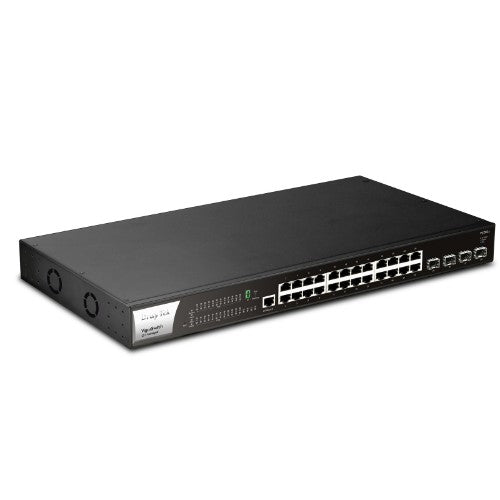

DrayTek VigorSwitch VSP2282x | 24 PoE Gigabit Ports | 4 10GbE SFP+

10GbE Gigabit Switch with 24 PoE Gigabit Ports and 10GbE SFP+ Uplink Ports and Power Redundancy DrayTek VigorSwitch VSP2282x | 24 PoE Gigabit Ports | 4 10GbE SFP+

Key Features

• 24 x RJ-45 Gigabit Ethernet Ports
• 4 x SFP+ 10GbE Ports for Uplink / Fibre
• VigorSwitch P2282x only: PoE+ on all RJ-45 ports
• VigorSwitch P2282x only: 400-watt Power-over-Ethernet budget
• 802.1q VLANs (Tag, Port & MAC-based)
• VLAN Routing & Static Route with DHCP server / relay
• Virtual Router Redundancy Protocol
• QoS for Application traffic prioritisation
• 802.1x RADIUS / TACACS+ Port Authentication with Accounting
• Voice VLAN for QoS (OUI Mode)
• Access Control List (ACL)
• Port Mirroring & Link Aggregation
• IGMP Snooping/Querier (Up to 256 Multicast Groups)
• IPv4 and IPv6 Support
• Hardware Monitoring
• Centrally managed or standalone operation
• Console Port

Description

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.

Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.

The PoE VigorSwitch P2282x comes with 24 Power over Ethernet (PoE) ports, allowing you to easily power and connect multiple devices such as IP cameras, wireless access points, and VoIP phones.
With a total power output of 400 watts, it ensures stable and efficient power distribution, eliminating the need for additional power cables and adapters. The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.

Specifications

Management features
Traffic classification	Yes
Reset button	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2+
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power connector	AC/DC
Network
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Static route	Yes
Forwarding rate	95.2 Mpps
Security
Access Control List (ACL) rules	512
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	LAN
Housing material	Metal
Rack mounting	Yes
Market segment	Business
Performance
Firmware upgradeable	Yes
Operating system installed	DrayOS
Stackable	Yes
Power
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet (PoE)	Yes
Other features
Warranty period	2 year(s)
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	281 mm
Height	44 mm
Weight	4.26 kg
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Packaging data
Package type	Box
Rack mount kit	Yes
Quick start guide	Yes
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Housing material	Metal
Firmware upgradeable	Yes
Rack mounting	Yes
Warranty period	2 year(s)
PSTI certified	Yes
Certificates
PSTI certified	Yes
Indication
LED indicators	LAN
