Netgear

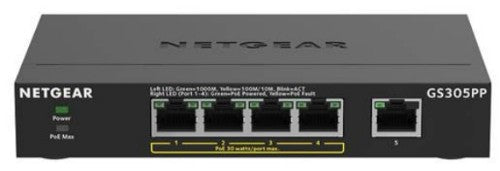

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

SKU GS305PP-300EUS
£84.49
£84.49
Excluding taxes
5-Port Gigabit Ethernet, 4 PoE Ports, 10 Gbps, 128 KB, 83 W, Desktop, Metal

Description

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Specifications

Management features
Reset button Yes
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable length detection Yes
Auto-sensing Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Data transmission
Jumbo frames 9216
Latency (1 Gbps) 2.4 µs
Packet buffer memory 128 MB
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Jumbo frames support Yes
Forwarding rate 1.448 Mpps
Design
Wall mountable Yes
Reset button Yes
Product colour Black
LED indicators Activity, Link, PoE, Power
Housing material Metal
Rack mounting No
Certification CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC
Performance
Mean time between failures (MTBF) 6710127 h
Packet buffer memory 128 MB
Auto-negotiation Yes
Power
Power consumption (max) 88.89 W
Power consumption (typical) 2.89 W
Input current 1.66 A
DC input voltage 54 V
Power source DC
Power connector DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 4
Total Power over Ethernet (PoE) budget 83 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 304 BTU/h
Weight & dimensions
Width 158 mm
Depth 101 mm
Height 29 mm
Weight 410 g
Packaging content
Manual Yes
Packaging data
Package width 269 mm
Package depth 73 mm
Package height 215 mm
Package weight 1.3 kg
Manual Yes
Technical details
Product colour Black
Mean time between failures (MTBF) 6710127 h
Housing material Metal
Rack mounting No
Memory
Packet buffer memory 128 MB
Certificates
Certification CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC
Indication
LED indicators Activity, Link, PoE, Power
Logistics data
Master (outer) case width 237 mm
Master (outer) case length 469 mm
Master (outer) case height 306 mm
Master (outer) case gross weight 8.52 kg
Products per master (outer) case 6 pc(s)
