Cisco

Cisco Business CBS110-16PP-D Unmanaged Switch | 16 Port GE | Partial PoE | Limited Lifetime Protection (CBS110-16PP-D)

SKU CBS110-16PP-UK
£173.80
£146.29
£173.80
£146.29
Excluding taxes
Business CBS110-16PP-D Unmanaged Switch | 16 Port GE | Partial PoE | Limited Lifetime Protection (CBS110-16PP-D)

Key Features

  • SWITCH PORTS: 16 -Port 10/100/1000
  • SIMPLE: Plug-and-play without a need for IT know-how or support.

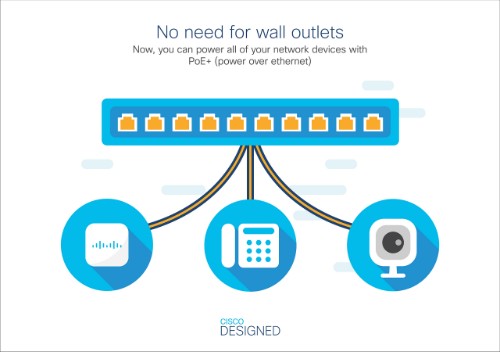

  • POWER-OVER-ETHERNET: 8 PoE ports with 64W total power budget
  • PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
  • PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support

Description

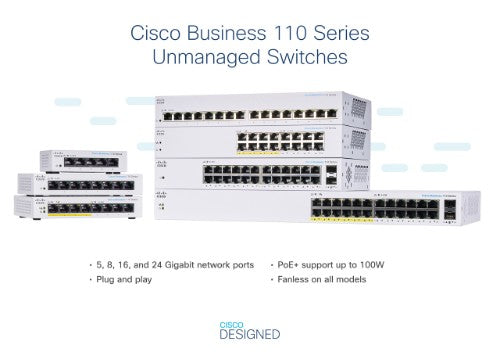

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Specifications

Ports & interfaces
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 4
Gigabit Ethernet (copper) ports quantity 16
Technical details
Form factor Desktop
Product colour Grey
Processor frequency 400 MHz
Mean time between failures (MTBF) 1971811 h
Rack mounting Yes
Built-in processor Yes
Products per shipping (inner) case 1 pc(s)
Sustainability compliance Yes
Compliance certificates CE
Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Switch layer L2
Network
Cable types supported Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
Head-of-line (HOL) blocking Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto MDI/MDI-X Yes
10G support No
Half duplex Yes
Data transmission
Jumbo frames 9216
MAC address table 8192 entries
Switching capacity 32 Gbit/s
Jumbo frames support Yes
Forwarding rate 23.8 Mpps
Security
Loop protection Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Certificates
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Memory
Internal memory 128 MB
Flash memory 16 MB
Design
Country of origin China
Form factor Desktop
Product colour Grey
LED indicators Yes
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Rack mounting Yes
Market segment Business
Performance
Processor frequency 400 MHz
Mean time between failures (MTBF) 1971811 h
Internal memory 128 MB
Flash memory 16 MB
Built-in processor Yes
Harmonized System (HS) code 85176990
Indication
LED indicators Yes
Packaging content
Packaging content Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
Rack mount kit Yes
Quick start guide Yes
Power
Power plug type Type C
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 Hz
Power supply location Internal
Power saving mode (EEE) Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 64 W
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 274.27 BTU/h
Weight & dimensions
Width 169.9 mm
Depth 279.4 mm
Height 44.5 mm
Weight 1.32 kg
Packaging data
Rack mount kit Yes
Quick start guide Yes
Package width 297.9 mm
Package depth 454.9 mm
Package height 82 mm
Package weight 2.21 kg
Sustainability
Sustainability compliance Yes
Logistics data
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85176990
Quantity per pack 1 pc(s)
Other features
Packaging content Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
Ethernet LAN data rates 10,100,1000 Mbit/s
Diagnostics Cable diagnostics
Country of origin China
