Cisco Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK)

Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK)

Key Features

• SWITCH PORTS: 48-Port 10/100/1000 + 4 x 1G SFP

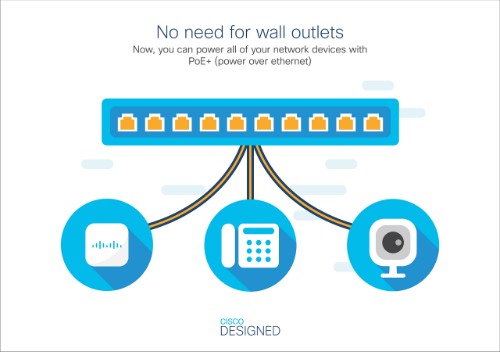

• POWER-OVER-ETHERNET: 48 PoE ports with 382W total power budget, PoE, PoE+

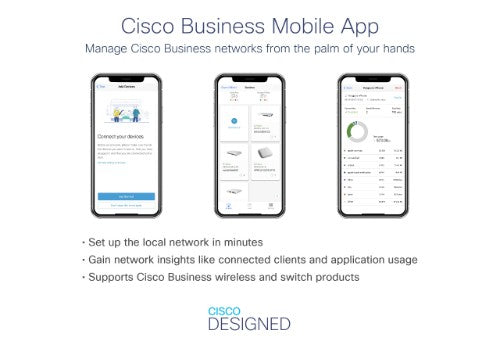

• SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
• SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
• INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
• ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
• PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support

Description

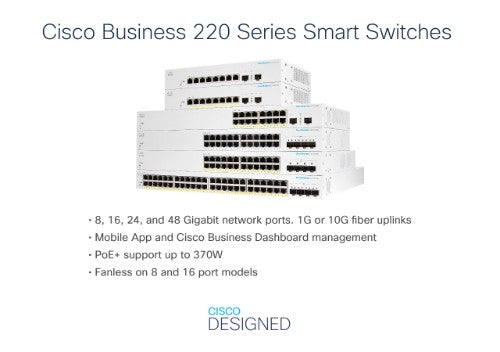

The Cisco Business CBS220-48P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L2
Configuring Location Settings (CLI)	Yes
Network
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
IGMP entries	256
Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	256
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Number of multicast groups filtered	256
Number of VLANs	256
Jumbo frames	9216
Packet buffer memory	12 MB
MAC address table	8192 entries
Switching capacity	104 Gbit/s
Jumbo frames support	Yes
Forwarding rate	74.38 Mpps
Performance
Packet buffer memory	12 MB
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Technical details
Product colour	White
Firmware upgradeable	Yes
Rack mounting	Yes
Products per shipping (inner) case	1 pc(s)
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Access Control List (ACL) rules	512
SSH/SSL support	Yes
Security algorithms	SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
IGMP entries	256
DHCP features	DHCP client
Multicast features
Number of multicast groups filtered	256
Multicast support	Yes
Protocols
Management protocols	SNMP
GARP VLAN Registration Protocol (GVRP)	Yes
Memory
Packet buffer memory	12 MB
Internal memory	256 MB
Flash memory	64 MB
Design
Reset button	Yes
Country of origin	China
Product colour	White
LED indicators	Activity, Link, Speed, System
Rack mounting	Yes
Number of fans	1 fan(s)
Market segment	Business
Indication
LED indicators	Activity, Link, Speed, System
Packaging content
Packaging content	Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Power
Power consumption (max)	478.2 W
Power plug type	Type C
Power supply included	Yes
Power consumption (typical)	52.6 W
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	382 W
Power over Ethernet (PoE) ports quantity	48
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	350 mm
Depth	440 mm
Height	44 mm
Weight	5.29 kg
Packaging data
Package width	513.1 mm
Package depth	574 mm
Package height	109.2 mm
Package weight	7.27 kg
Logistics data
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Other features
Packaging content	Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
Country of origin	China
