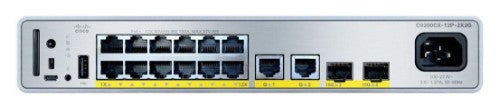

Cisco C9200CX-12P-2XGH-E network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials

Description

Extend intent-based networking everywhere

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE® and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or cloud monitoring for Catalyst.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
IGMP entries	1000
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Data transmission
Multicast MAC address table	1000 entries
MAC address table	32000 entries
Switching capacity	34 Gbit/s
Performance
Stackable	Yes
Mean time between failures (MTBF)	553140 h
Technical details
Stackable	Yes
Mean time between failures (MTBF)	553140 h
Rack mounting	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	14
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Compatible memory cards	SD
USB 2.0 ports quantity	1
Security
Security algorithms	256-bit AES
IGMP snooping	Yes
Access Control List (ACL)	Yes
IGMP entries	1000
Multicast features
Multicast MAC address table	1000 entries
Multicast support	Yes
Design
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	Yes
Power source	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Weight & dimensions
Width	269 mm
Depth	244 mm
Height	44 mm
Weight	2.99 kg
