Cisco

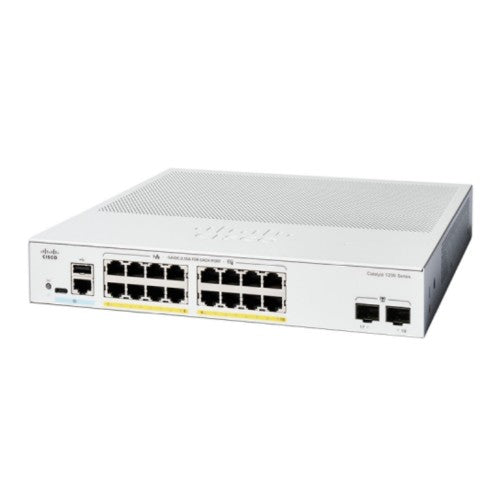

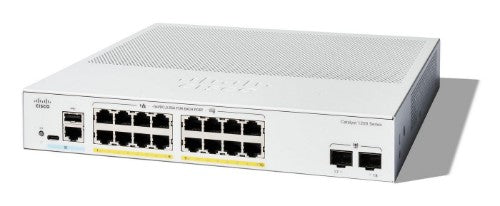

Cisco Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)

SKU C1200-16P-2G
£411.93
£308.97
£411.93
£308.97
Excluding taxes
Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)

Key Features

  • SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)
  • SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
  • SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
  • ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
  • PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Description

The Cisco Catalyst 1200-16P-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Specifications

Management features
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Multicast support Yes
MIB support Yes
Switch layer L2
Configuring Location Settings (CLI) Yes
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Number of VLANs 255
Link aggregation Yes
Broadcast storm control Yes
IGMP snooping Yes
IGMP entries 255
Data transmission
Jumbo frames 9000
Number of static routes 32
Packet buffer memory 1.5 MB
MAC address table 8000 entries
Switching capacity 36 Gbit/s
Jumbo frames support Yes
Static route Yes
Forwarding rate 26.78 Mpps
Number of VLANs 255
Security
Loop protection Yes
Authentication Guest VLAN
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
Authentication type RADIUS
IGMP entries 255
DHCP features DHCP client
Multicast features
Multicast support Yes
Design
Product colour Grey
LED indicators Yes
Rack mounting Yes
Country of origin China
Performance
Mean time between failures (MTBF) 706983 h
Packet buffer memory 1.5 MB
Power
Power consumption (max) 156.4 W
Power plug type Type C
AC input voltage 110 - 220 V
AC input frequency 50/60 Hz
Power source AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity 16
Total Power over Ethernet (PoE) budget 120 W
Power over Ethernet (PoE) Yes
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Country of origin China
Operational conditions
Storage temperature (T-T) -25 - 70 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 536.05 BTU/h
Virtual LAN features
VLAN support Yes
Number of VLANs 255
Weight & dimensions
Width 296.9 mm
Depth 268.2 mm
Height 43.9 mm
Weight 2.38 kg
Packaging data
Package width 414 mm
Package depth 399 mm
Package height 108 mm
Package weight 4.11 kg
Technical details
Product colour Grey
Mean time between failures (MTBF) 706983 h
Rack mounting Yes
Memory
Packet buffer memory 1.5 MB
Indication
LED indicators Yes
Packaging content
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Logistics data
Country of origin China
