Cisco

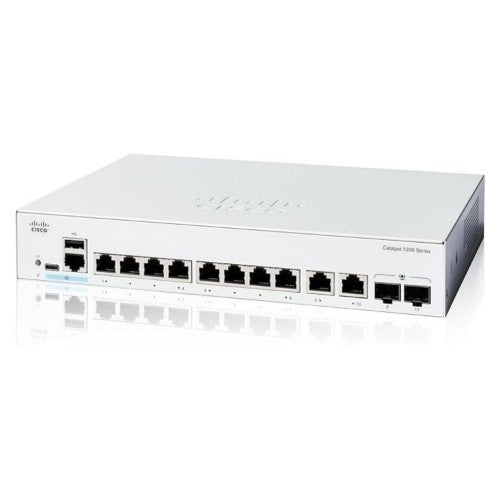

Cisco Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G)

SKU C1200-8T-E-2G
£195.81
£146.92
£195.81
£146.92
Excluding taxes
Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G)

Key Features

  • SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo
  • SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
  • SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
  • ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
  • PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Description

The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Specifications

Management features
Reset button Yes
Multicast support Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
MIB support Yes
Switch layer L2
Configuring Location Settings (CLI) Yes
Network
GARP VLAN Registration Protocol (GVRP) Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Head-of-line (HOL) blocking Yes
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Number of VLANs 255
Link aggregation Yes
Broadcast storm control Yes
10G support No
Virtual LAN features
VLAN support Yes
Number of VLANs 255
Data transmission
Number of VLANs 255
Jumbo frames 9000
Packet buffer memory 1.5 MB
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Number of queues 8
Jumbo frames support Yes
Forwarding rate 14.88 Mpps
Performance
Packet buffer memory 1.5 MB
Processor frequency 1.4 MHz
Memory type DDR4-SDRAM
Mean time between failures (MTBF) 2171669 h
Internal memory 1000 MB
Flash memory 512 MB
Firmware upgradeable Yes
Built-in processor Yes
Technical details
Form factor 1U
Product colour White
Processor frequency 1.4 MHz
Mean time between failures (MTBF) 2171669 h
Firmware upgradeable Yes
Rack mounting Yes
Built-in processor Yes
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45/USB Type-C
Security
Loop protection Yes
Access Control List (ACL) rules 512
Security algorithms 802.1x RADIUS
Queue scheduling algorithms Weighted Round Robin (WRR)
DoS attack prevention Yes
Multicast features
Multicast support Yes
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
Certificates
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Memory
Packet buffer memory 1.5 MB
Memory type DDR4-SDRAM
Internal memory 1000 MB
Flash memory 512 MB
Design
Reset button Yes
Country of origin China
Form factor 1U
Product colour White
LED indicators Yes
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Rack mounting Yes
Indication
LED indicators Yes
Packaging content
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Mobile network
GARP VLAN Registration Protocol (GVRP) Yes
Power
Power plug type Type C
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (typical) 10.65 W
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -25 - 70 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 184.9 mm
Depth 268.2 mm
Height 43.9 mm
Weight 1.39 kg
Packaging data
Package width 299 mm
Package depth 544.8 mm
Package height 103.9 mm
Package weight 2.45 kg
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Country of origin China
