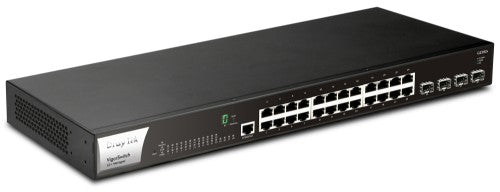

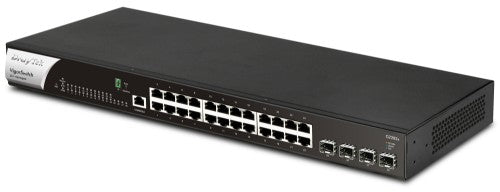

DrayTek VigorSwitch G2282x L2+ Managed 24-Port Gigabit Switch with 4 x 10GbE SFP+ Ports and Power Backup Input

10GbE Gigabit Switch with 24 Gigabit Ports & 4 10GbE SFP+ Uplink Ports

Key Features

• 24 x RJ-45 Gigabit Ethernet Ports
• 4 x SFP+ 10GbE Ports for Uplink / Fibre
• 802.1q VLANs (Tag, Port & MAC-based)
• VLAN Routing & Static Route with DHCP server / relay
• Virtual Router Redundancy Protocol
• QoS for Application traffic prioritisation
• 802.1x RADIUS / TACACS+ Port Authentication with Accounting
• Voice VLAN for QoS (OUI Mode)
• Access Control List (ACL)
• Port Mirroring & Link Aggregation
• IGMP Snooping/Querier (Up to 256 Multicast Groups)
• IPv4 and IPv6 Support
• Hardware Monitoring
• Centrally managed or standalone operation
• Console Port

Description

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.

Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.

The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Traffic classification	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2+
Cloud-managed	Yes
Network
IGMP snooping	Yes
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Power
Power connector	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Power source	AC
Technical details
Firmware upgradeable	Yes
Warranty period	2 year(s)
PSTI certified	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power connector	AC/DC
Data transmission
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
Security
Access Control List (ACL) rules	512
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Design
Reset button	Yes
LED indicators	LAN
Market segment	Business
Performance
Firmware upgradeable	Yes
Fanless	Yes
Indication
LED indicators	LAN
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	440 mm
Depth	205 mm
Height	44 mm
Weight	2.69 kg
Packaging data
Package type	Box
Rack mount kit	Yes
Quick start guide	Yes
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
