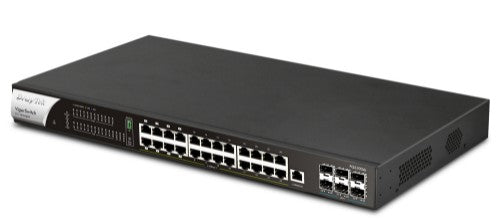

DrayTek PQ2300XB Managed L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

VigorSwitch PQ2300xb 16 Port 2.5 GbE 4 Ports 10Gbps SFP+ Switch with PoE+/PoE++

Key Features

• 24 x RJ-45 multi-Gigabit Ethernet Ports (2500/1000/100/10) with PoE (8 PoE++ / 16 PoE+)
• 6 x SFP+ 10GbE Ports for Uplink / Fibre
• PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
• 400-watt Power-over-Ethernet budget
• 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
• VLAN Routing & Static Route with DHCP server / relay
• QoS for Application traffic prioritisation
• 802.1x RADIUS / TACACS+ Port Authentication with Accounting
• Voice VLAN for QoS (OUI Mode)
• Access Control List (ACL)
• Port Mirroring & Link Aggregation
• IGMP Snooping & Querying
• IPv4 and IPv6 Support with IP Conflict Prevention
• Centrally managed or standalone operation
• Console Port

Description

VigorSwitch PQ2300xb is a 2.5 Gigabit L2+ Managed switch with 8 PoE++ 2.5GbE ports, 16 PoE+ 2.5GbE ports (total of 400W output) and 6 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2300xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

Specifications

Management features
Traffic classification	Yes
ARP inspection	Yes
Reset button	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2+
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	6
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Console port	RJ-45
Power connector	AC/DC
2.5G Ethernet (copper) ports quantity	24
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	512
Link aggregation	Yes
Broadcast storm control	Yes
10G support	Yes
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Jumbo frames	12000
Packet buffer memory	12 MB
MAC address table	32000 entries
Switching capacity	240 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	178.56 Mpps
Number of multicast groups filtered	256
Number of VLANs	512
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Static port security	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Number of multicast groups filtered	256
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Reset button	Yes
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Housing material	Metal
Rack mounting	Yes
Performance
Firmware upgradeable	Yes
Packet buffer memory	12 MB
Stackable	Yes
Power
Power consumption (max)	550 W
AC input voltage	100 - 240 V
Redundant power supply (RPS) support	Yes
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	90 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Other features
Warranty period	2 year(s)
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Number of VLANs	512
Weight & dimensions
Width	440 mm
Depth	281 mm
Height	44 mm
Weight	4.3 kg
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Housing material	Metal
Firmware upgradeable	Yes
Rack mounting	Yes
Warranty period	2 year(s)
Memory
Packet buffer memory	12 MB
Indication
LED indicators	Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
