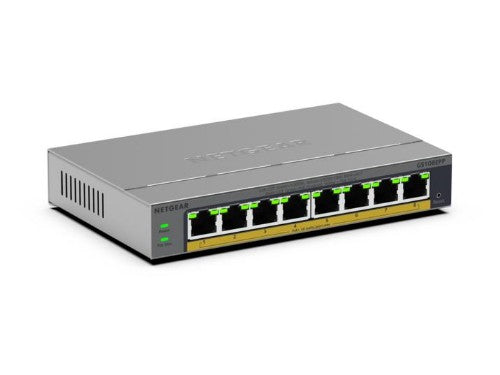

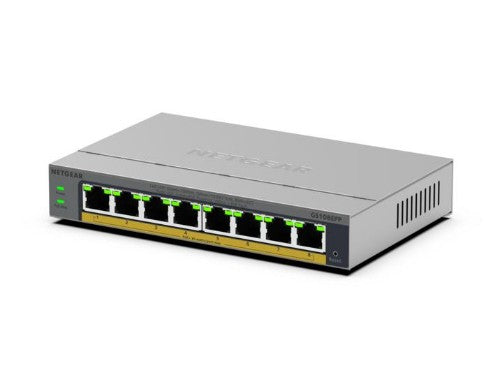

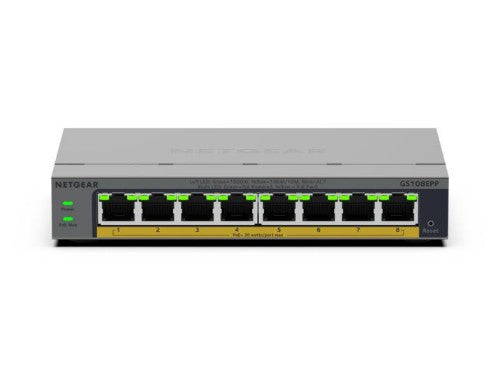

NETGEAR GS108EPP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Grey

5-Port, Gigabit, PoE+, 141.4 W, 1.5 MB, 2K, 0-40°C, Grey, 158 x 101 x 27 mm, 0.40 kg

Key Features

• 8 x Gigabit Ethernet ports with PoE+
• Plug-and-play with fundamental network management features
• QoS and VLAN management
• Fanless and silent
• Desktop or wall-mount

Description

EASY POE CONTROLS

Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices

GIGABIT ETHERNET

5 ports provide gigabit Ethernet connectivity to your devices

VLANS

Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
Network
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Jumbo frames	9216
Packet buffer memory	1.5 MB
MAC address table	2000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Multicast MAC address table	4000 entries
Security
IGMP snooping	Yes
DHCP features	DHCP client
Multicast features
Multicast MAC address table	4000 entries
Design
Form factor	Desktop/Wall-Mounting
Product colour	Grey
Stackable	No
LED indicators	Activity, Link, PoE, Power, Speed, Status
Housing material	Metal
Rack mounting	No
Certification	CB, CE LVD, CSA
Performance
Mean time between failures (MTBF)	842428 h
Fanless	Yes
Packet buffer memory	1.5 MB
Stackable	No
Power
Power consumption (max)	141.4 W
Power supply included	No
Input current	1.66 A
DC input voltage	54 V
Power source	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	123 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Other features
Bandwidth	10 Gbit/s
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	3.24 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	27 mm
Weight	400 g
Packaging content
Quick start guide	Yes
Manual	Yes
Technical details
Form factor	Desktop/Wall-Mounting
Product colour	Grey
Stackable	No
Mean time between failures (MTBF)	842428 h
Housing material	Metal
Rack mounting	No
Compliance certificates	CB, CE, Federal Communications Commission (FCC)
Memory
Packet buffer memory	1.5 MB
Certificates
Certification	CB, CE LVD, CSA
Compliance certificates	CB, CE, Federal Communications Commission (FCC)
Indication
LED indicators	Activity, Link, PoE, Power, Speed, Status
Packaging data
Quick start guide	Yes
Manual	Yes
