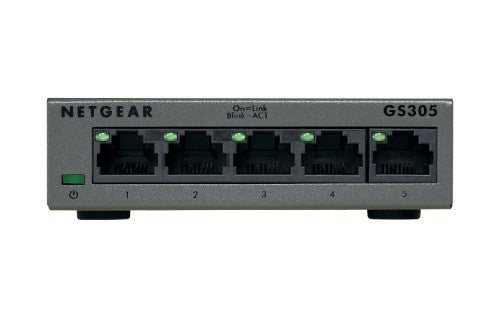

NETGEAR SOHO Unmanaged Gigabit Ethernet (10/100/1000) Black

5x 10/100/1000, RJ-45, DC 5 V, 0.7 A, 101 x 94 x 29 mm, 250 g

Key Features

• Choice of Fast Ethernet and Gigabit Ethernet connectivity
• Energy-efficient technology for power savings
• Auto-MDI/MDIX eliminates the need for crossover cables
• Non-blocking switching architecture for maximum throughput at wire speed
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
• Fanless design for silent operation
• Desktop, wall-mountable or rack-mountable (GS324, GS348)

Description

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Specifications

Performance
Packet buffer memory	0.128 MB
Stackable	No
Mean time between failures (MTBF)	3831422 h
Harmonized System (HS) code	85176990
Fanless	Yes
Technical details
Product colour	Black
Stackable	No
Mean time between failures (MTBF)	3831422 h
Housing material	Metal
Rack mounting	No
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Network
Networking standards	IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Data transmission
Packet forwarding rate (1 Gbps)	1448000 pps
Jumbo frames	9216
Latency (1 Gbps)	2.6 µs
Packet buffer memory	0.128 MB
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Certificates
Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD
Memory
Packet buffer memory	0.128 MB
Design
Wall mountable	Yes
Product colour	Black
Stackable	No
LED indicators	Activity, Link, Power
Housing material	Metal
Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD
Rack mounting	No
Indication
LED indicators	Activity, Link, Power
Power
Power consumption (max)	2.15 W
Input current	0.7 A
DC input voltage	5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	7.35 BTU/h
Weight & dimensions
Width	101 mm
Depth	94 mm
Height	29 mm
Weight	250 g
Packaging data
Package width	142 mm
Package depth	238 mm
Package height	64 mm
Package weight	484 g
Logistics data
Harmonized System (HS) code	85176990
