StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Connector/Mountable

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Connector/Mountable (IES1G52UPDIN)

Key Features

• FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots / Use with devices like cameras, sensors, wi-fi APs
• FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire using terminal block power, or use dual power sources for redundancy / Input voltage range is 48-56V DC
• ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged industrial IP-30 aluminum housing / -40C to 75C hardened operating temp / DIN/Wall Mount
• TECH SPECS: 10/100/1000 Mbps Auto-Negotiation / Unmanaged / 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flexible Copper or SFP port (MSA Compliant) / Total power budget: 120W
• STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Description

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail Mountable

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.

Power Over Ethernet & 48V Voltage

With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

• Cameras
• Sensors
• Wi-Fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

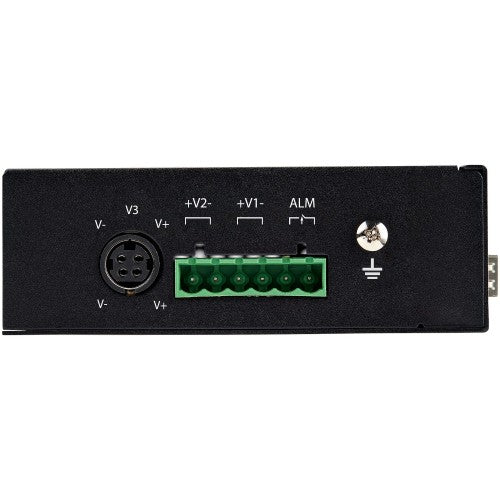

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Terminal block port	Yes
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory	1 MB
Auto-negotiation	Yes
Mean time between failures (MTBF)	525058 h
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Mean time between failures (MTBF)	525058 h
Housing material	Steel
Rack mounting	No
Management features
Switch type	Unmanaged
Network
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	1 MB
Switching capacity	12 Gbit/s
Jumbo frames support	Yes
Protocols
Supported network protocols	CSMA/CD
Certificates
Safety	EN60950-1, MET (UL) 60950-1
Certification	CE, RoHS, FCC, UL
Memory
Packet buffer memory	1 MB
Design
Wall mountable	Yes
International Protection (IP) code	IP30
DIN rail mounting	Yes
Safety	EN60950-1, MET (UL) 60950-1
Product colour	Black
LED indicators	Link, PoE, Power
Housing material	Steel
Certification	CE, RoHS, FCC, UL
Rack mounting	No
Indication
LED indicators	Link, PoE, Power
Power
Power consumption (max)	126 W
Surge protection voltage	2 kV
DC input voltage	48 - 56 V
Surge protection	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	105 mm
Depth	142 mm
Height	36.2 mm
Weight	492 g
Packaging data
Terminal block included	Yes
Quick start guide	Yes
Package width	211 mm
Package depth	162 mm
Package height	64 mm
Package weight	737 g
Logistics data
Master (outer) case width	355 mm
Master (outer) case length	345 mm
Master (outer) case height	225 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990
Other features
Terminal block port	Yes
Packaging content
Terminal block included	Yes
Quick start guide	Yes
