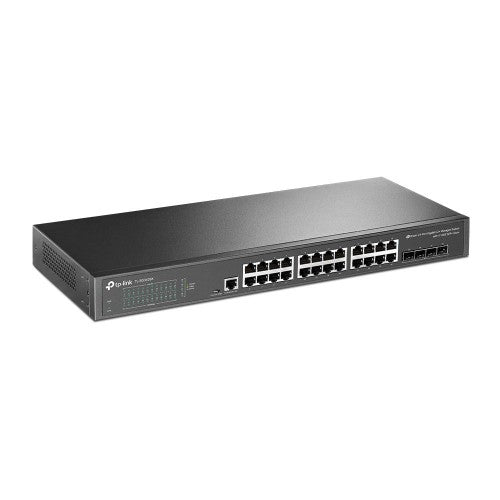

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

24× 10/100/1000 Mbps RJ45, 4× 10G SFP+, 1× RJ45 Console Port, 1× Micro-USB, 128 Gbps, 95.23 Mpps, 16 K MAC, Jumbo Frame 9 KB, 440 × 180 × 44 mm

Key Features

• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
• Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Static Routing: Helps route internal traffic for more efficient use of network resources
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Description

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2+/L3
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Console port	RJ-45/micro-USB
Power connector	AC-in jack
Network
Active link detection	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
10G support	Yes
Policy-based routing	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes	48
IPv4 routes	48
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Jumbo frames	9000
Number of static routes	48
Packet buffer memory	12 MB
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	95.23 Mpps
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor	1U
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Number of fans	0 fan(s)
Performance
Fanless	Yes
Packet buffer memory	12 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	23.6 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	80.353 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Quick start guide	Yes
Cables included	LAN (RJ-45)
Packaging data
Package width	528 mm
Package depth	250 mm
Package height	80 mm
Package weight	2.69 kg
Quick start guide	Yes
Cables included	LAN (RJ-45)
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Memory
Packet buffer memory	12 MB
Indication
LED indicators	Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
