TP-LINK

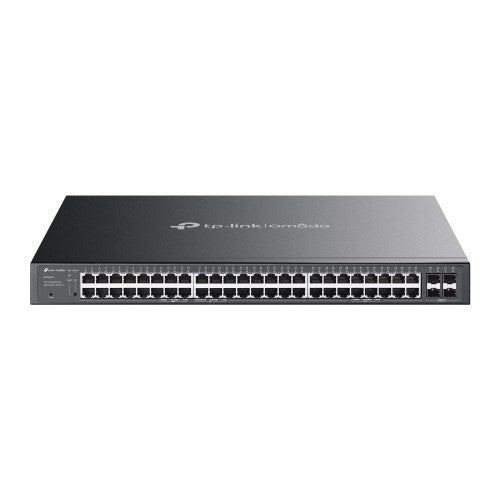

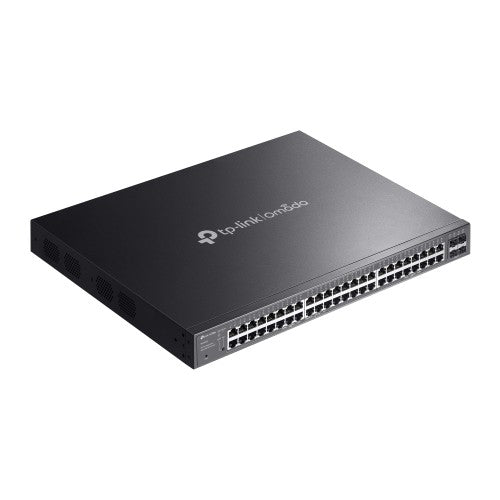

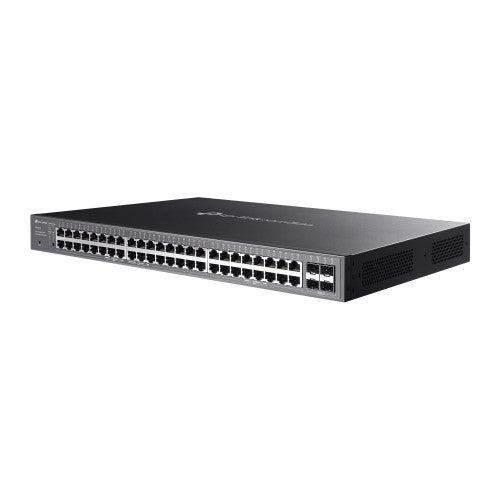

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

SKU SG2452LP
£547.45
£407.41
£547.45
£407.41
Excluding taxes
32× 10/100/1000 Mbps PoE+ RJ45, 16× 10/100/1000 Mbps non-PoE RJ45, 4× Gigabit SFP, 104 Gbps, 16 K MAC, 9 KB Jumbo, 440x330x44 mm

Key Features

  • 32× Gigabit 802.3af/at PoE+ ports
  • 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
  • 230 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for quiet operation
  • Durable metal casing and rackmountable design

Description

Power over Ethernet, Flexible Network Deployment

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features
ARP inspection Yes
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
MIB support Yes
Switch layer L2/L2+
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
Ports & interfaces
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Power connector AC-in jack
Network
Active link detection Yes
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
VLAN support Yes
Port mirroring Yes
Link aggregation Yes
IP routing Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto MDI/MDI-X Yes
10G support No
IGMP snooping Yes
Data transmission
Jumbo frames 9000
MAC address table 16000 entries
Switching capacity 104 Gbit/s
Jumbo frames support Yes
Static route Yes
Forwarding rate 77.37 Mpps
Security
Loop protection Yes
SSH/SSL support Yes
Security algorithms SNMP, SNMPv2, SNMPv3
MAC address filtering Yes
IGMP snooping Yes
Authentication type RADIUS
DHCP features DHCP relay, DHCP server
Design
Form factor 1U
Product colour Black
LED indicators Yes
Rack mounting Yes
Power
Power consumption (max) 304.5 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power source AC
Power connector AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 32
Total Power over Ethernet (PoE) budget 230 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 1035.4 BTU/h
Virtual LAN features
VLAN support Yes
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 44 mm
Technical details
Form factor 1U
Product colour Black
Rack mounting Yes
Indication
LED indicators Yes
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s
