TP-LINK

TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

SKU ES206GP
£48.88
£48.88
Excluding taxes
ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+

Key Features

  • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation

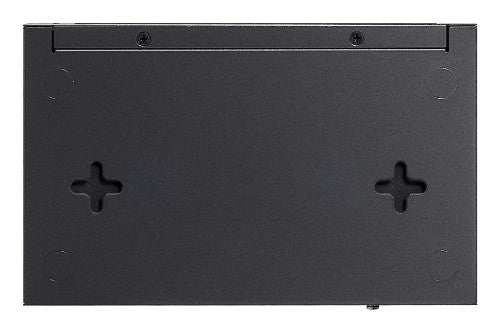

  • Durable metal casing and desktop/wall mounting design

Description

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Reset button Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Unified static configuration Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 6
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 6
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
VLAN support Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Fast leave Yes
Zero Touch Provisioning (ZTP) Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping Yes
Optical fiber
Transmission distance (max) 0.25 km
Data transmission
Jumbo frames 15
Packet buffer memory 4 MB
MAC address table 8000 entries
Switching capacity 12 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Forwarding rate 7.4 Mpps
Security
Loop protection Yes
IGMP snooping Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
DHCP features DHCP client
Design
Wall mountable Yes
Reset button Yes
Product colour Black
LED indicators Yes
Performance
Firmware upgradeable Yes
Fanless Yes
Packet buffer memory 4 MB
Auto-negotiation Yes
Power
Power supply included Yes
Surge protection voltage 6 kV
Input current 1.31 A
DC input voltage 53.5 V
Surge protection Yes
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 4
Total Power over Ethernet (PoE) budget 65 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width 158 mm
Depth 101 mm
Height 25 mm
Packaging content
User guide Yes
AC adapter included Yes
Packaging data
AC adapter included Yes
Package type Box
User guide Yes
Technical details
Product colour Black
Firmware upgradeable Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory 4 MB
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators Yes
