TP-LINK

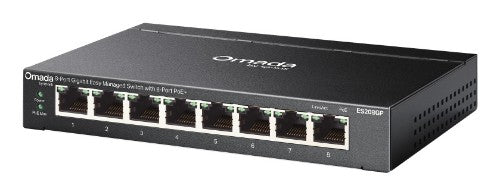

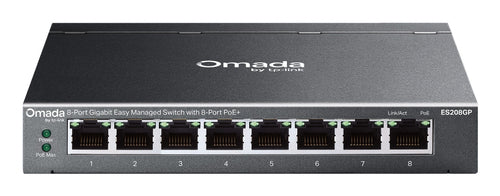

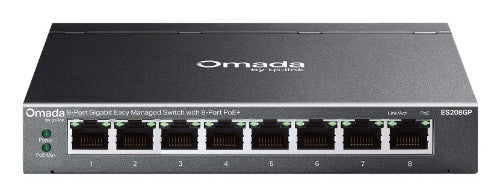

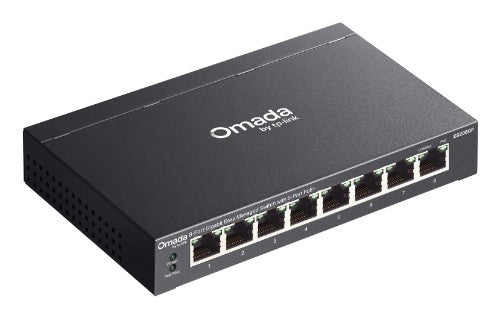

TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

SKU ES208GP
£82.09
£57.44
£82.09
£57.44
Excluding taxes
8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+), 64W, 158 × 100.7 × 25.4 mm

Key Features

  • 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
  • 64W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Description

TP-Link ES208GP Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+ PORT: 8? Gigabit PoE+ Ports SPEC: 802.3at/af, 64 W PoE Power, Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Specifications

Management features
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Switch layer L2
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN support Yes
Port mirroring Yes
Number of VLANs 4000
Link aggregation Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping Yes
Optical fiber
Transmission distance (max) 0.25 km
Data transmission
Jumbo frames 15000
Packet buffer memory 0.5 MB
MAC address table 8000 entries
Switching capacity 16 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Forwarding rate 11.904 Mpps
Number of VLANs 4000
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP client
Multicast features
Multicast support Yes
Design
Form factor DIN rail
Product colour Black
LED indicators Yes
Rack mounting Yes
Power
Input current 1.31 A
DC input voltage 53 V
Power source DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 64 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Number of VLANs 4000
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width 158 mm
Depth 100.7 mm
Height 25.4 mm
Packaging content
Quick start guide Yes
Cables included Power
Performance
Packet buffer memory 0.5 MB
Auto-negotiation Yes
Technical details
Form factor DIN rail
Product colour Black
Rack mounting Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory 0.5 MB
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators Yes
Packaging data
Quick start guide Yes
Cables included Power
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s
