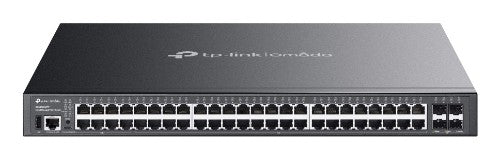

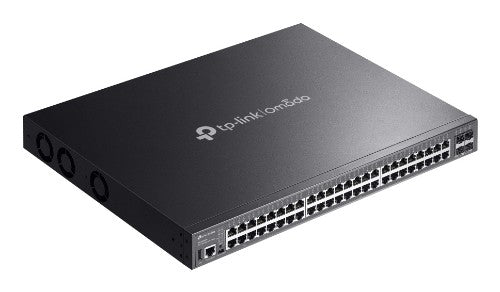

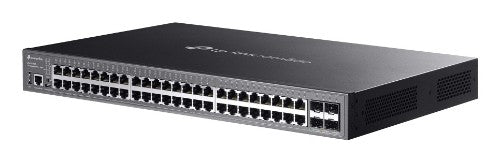

TP-Link Omada SG5452XMPP network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots

Key Features

• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
• 4× 10 Gbps SFP+ slots
• Up to 770W total PoE budget*
• Fast PoE and Perpetual PoE
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Description

What This Product Does

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.

IEEE 802.3af/at/bt-compliant Power over Ethernet

8× IEEE 802.3af/at/bt-compliant and 40× IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

High-speed Connectivity and Powerful Stacking

48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	48
USB 2.0 ports quantity	1
Console port	RJ-45
USB Type-C ports quantity	1
Network
Networking standards	IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	12 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	130.94 Mpps
Number of VLANs	4000
Security
IP-MAC-Port binding	Yes
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Design
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Number of fans	3 fan(s)
Performance
Physical stacking (units)	4
Processor frequency	1200 MHz
Noise level	58.5 dB
Memory type	DRAM
Mean time between failures (MTBF)	275.277 h
Internal memory	2000 MB
Flash memory	512 MB
Firmware upgradeable	Yes
Processor manufacturer	ARM
Telnet	Yes
Built-in processor	Yes
Fanless	Yes
Packet buffer memory	12 MB
Stackable	Yes
Power
Power consumption (max)	893.6 W
Power supply included	Yes
Surge protection voltage	6 kV
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	40
Total Power over Ethernet (PoE) budget	770 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Other features
Management level	4
Bandwidth	88 Gbit/s
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	3047.18 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Technical details
Physical stacking (units)	4
Product colour	Black
Stackable	Yes
Processor frequency	1200 MHz
Noise level	58.5 dB
Mean time between failures (MTBF)	275.277 h
Firmware upgradeable	Yes
Rack mounting	Yes
Built-in processor	Yes
Telnet	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory	12 MB
Memory type	DRAM
Internal memory	2000 MB
Flash memory	512 MB
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators	Yes
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
