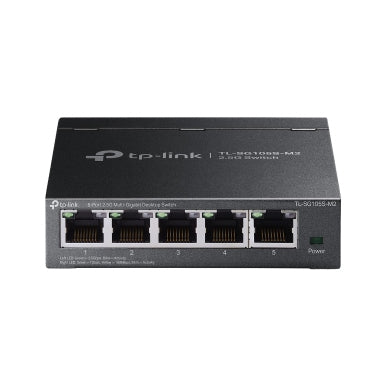

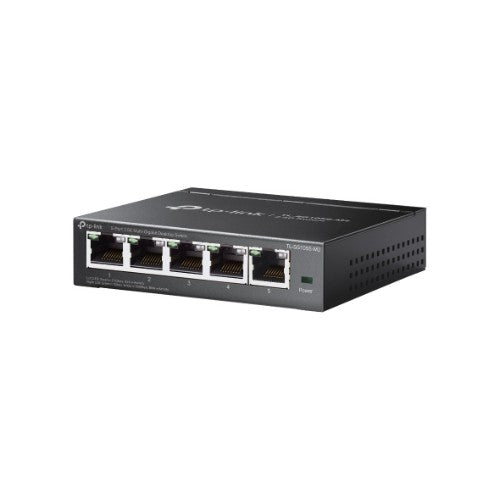

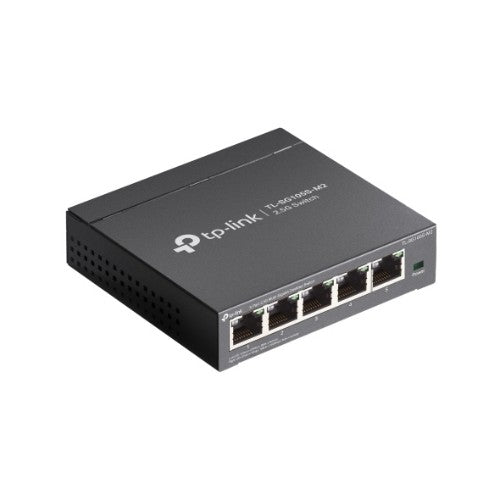

TP-Link TL-SG105S-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Black

5-Port 2.5G Multi-Gigabit Desktop Switch

Description

2.5G Super-Fast Speeds without Changing Cables
This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.

Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play. Allows for easy deployment without the need for a technician.
Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Network
Networking standards	IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	25 Gbit/s
Jumbo frames support	Yes
Forwarding rate	18.6 Mpps
Security
IGMP snooping	Yes
Design
Wall mountable	Yes
Product colour	Black
LED indicators	Link, Power
Housing material	Metal
Performance
Fanless	Yes
Auto-negotiation	Yes
Power
Power consumption (max)	5.81 W
Power supply included	Yes
Input current	0.6 A
DC input voltage	9 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	19.754 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
Quick start guide	Yes
Technical details
Product colour	Black
Housing material	Metal
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators	Link, Power
Packaging data
Quick start guide	Yes
