Ubiquiti

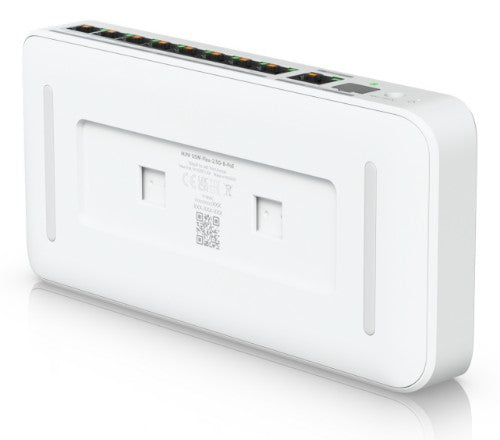

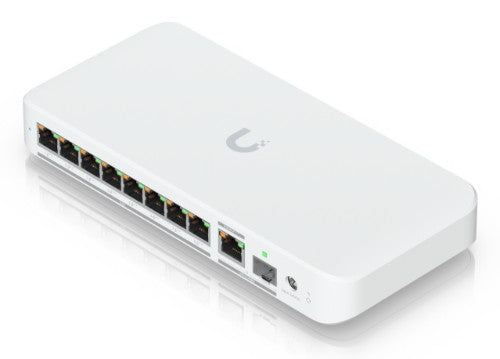

Ubiquiti UniFi Flex 2.5G PoE Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting White

SKU USW-FLEX-2.5G-8-POE
£167.02
£167.02
Excluding taxes
8x 2.5 GbE PoE++, 1x 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port, 60W PoE++, 60 Gbps, white

Key Features

  • (8) 2.5 GbE PoE++ output ports
  • (1) 10 GbE PoE+++ input port for power / SFP+ port combo (57W PoE availability with PoE+++ input / 37W PoE availability with PoE++ input / 12W PoE availability with PoE+ input)
  • 196W PoE availability with optional AC power adapter

Description

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.

*AC power adapter sold separately.


Specifications

Management features
Reset button Yes
Switch type Managed
Multicast support Yes
Switch layer L2
Ports & interfaces
SFP+ module slots quantity 1
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Power connector DC-in jack
2.5G Ethernet (copper) ports quantity 8
10G Ethernet (copper) ports quantity 1
Network
Rate limiting Yes
Port mirroring Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Broadcast storm control Yes
10G support Yes
Data transmission
Switching capacity 60 Gbit/s
Jumbo frames support Yes
Forwarding rate 44.64 Mpps
Throughput 30 Gbit/s
Security
Loop protection Yes
Multicast features
Multicast support Yes
Design
Wall mountable Yes
Reset button Yes
DIN rail mounting Yes
Form factor Desktop/Wall-Mounting
Product colour White
LED indicators Activity, Link, PoE, Power, Status
Housing material Polycarbonate (PC)
Power
Power consumption (max) 17 W
Power supply included No
Input current 3.9 A
DC input voltage 54 V
Power source AC/DC/PoE
Power connector DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 196 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) voltage 57 V
Power over Ethernet 4PPoE (PoE++) ports quantity 1
Operational conditions
Operating temperature (T-T) -20 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 212.9 mm
Depth 99.4 mm
Height 33.5 mm
Weight 567 g
Technical details
Form factor Desktop/Wall-Mounting
Product colour White
Housing material Polycarbonate (PC)
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators Activity, Link, PoE, Power, Status
Other features
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
