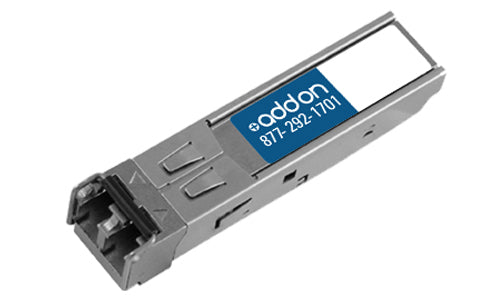

AddOn Networks 455883-B21-AO network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

SFP+, 850nm, 300m, MM, LC, 10GBASE-SR, 0.65W

Description

AddOn's 455883-B21-AO is an HP compatible SFP+ transceiver that operates at 850nm over Multi-Mode Fiber, with a maximum reach of 300m connected via a LC connector built to meet or exceed the OEM's specifications, and comply with MSA (Multi-Source Agreement) standards. All products are 100% functionally tested, and are guaranteed compatible.

AddOn transceivers (GBIC, SFP, SFP+, X2, XFP and XENPAK) are 100% compliant for all networking product lines, and are factory loaded with OEM specific configuration data required for networking compliance. These transceivers initialize and perform identically to the OEM transceivers and can be mixed and deployed with other OEM or 3rd party transceivers, for seamless network performance.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Fiber ports quantity	1
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Technical details
Maximum transfer distance	300 m
Wavelength	850 nm
Compatible products	HP
Compliance certificates	RoHS
Ports & interfaces
Fiber ports quantity	1
Performance
Compatible products	HP
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	300 m
Wavelength	850 nm
Fiber ports quantity	1
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Features
Certification	IEC 60950-1:2001 EN 60950- 1:2001 CDRH 21 CFR 1040.10
Safety	1040.11 IEC 60825-1 Rev2 2007
Compatible products	HP
Power
Power consumption (typical)	0.65 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Certificates
Certification	IEC 60950-1:2001 EN 60950- 1:2001 CDRH 21 CFR 1040.10
Safety	1040.11 IEC 60825-1 Rev2 2007
