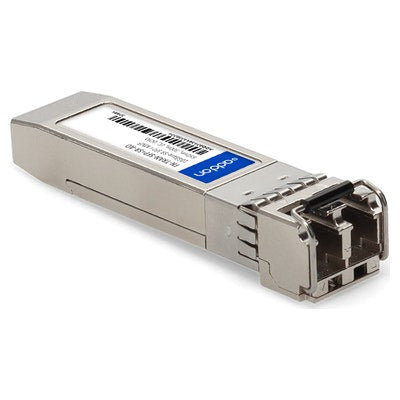

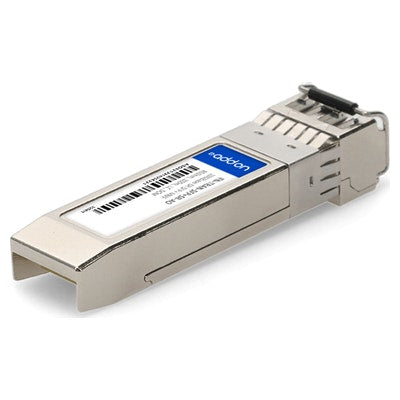

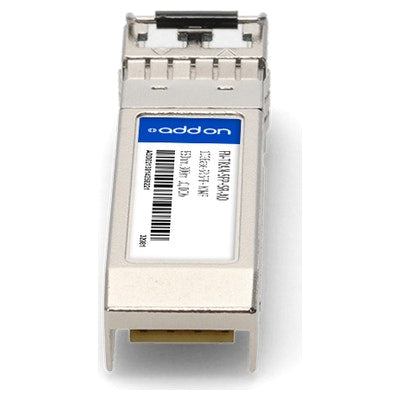

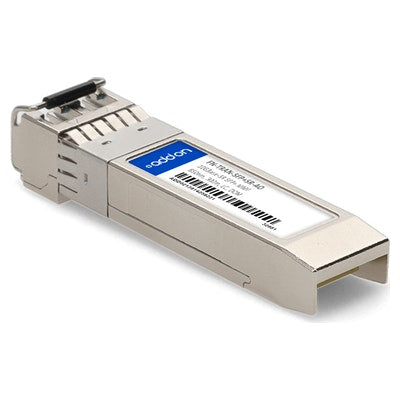

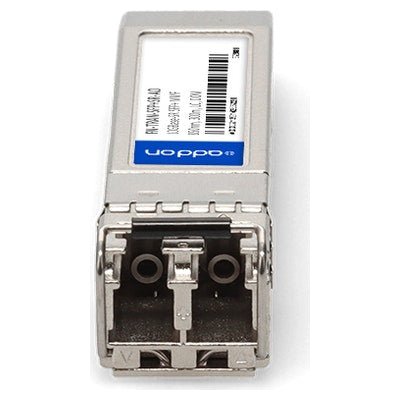

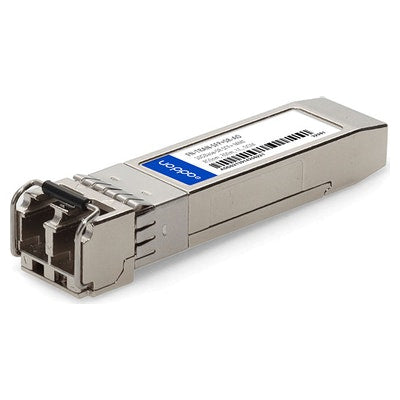

AddOn Networks FN-TRAN-SFP+SR-AO network transceiver module Fiber optic 10000 Mbit/s 850 nm

10G, SFP+, LC, 850nm

Description

Fortinet FN-TRAN-SFP+SR Compatible TAA Compliant 10GBase-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)

This Fortinet FN-TRAN-SFP+SR compatible SFP+ transceiver provides 10GBase-SR throughput up to 300m over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent Fortinet transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Technical details
Package width	69.8 mm
Package height	30.5 mm
Maximum transfer distance	300 m
Wavelength	850 nm
Compliance certificates	RoHS
Performance
Product colour	Metallic
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum transfer distance	300 m
Wavelength	850 nm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Fiber ethernet cabling technology	10GBASE
Features
Product colour	Metallic
Power
Maximum current	0.3 A
Input voltage	3.43 V
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Maximum operating temperature	70 °C
Packaging data
Package depth	120.7 mm
Package width	69.8 mm
Package height	30.5 mm
Package weight	181.437 g
Weight & dimensions
Package depth	120.7 mm
Package width	69.8 mm
Package height	30.5 mm
Package weight	181.437 g
