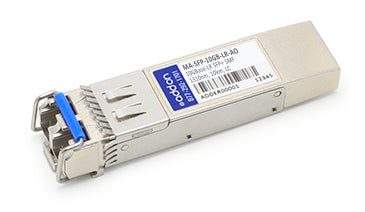

AddOn Networks MA-SFP-10GB-LR-AO network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

SMF, 1310nm, 10km, LC, DOM

Description

Meraki now Cisco® MA-SFP-10GB-LR Compatible 10GBase-LR SFP+ Transceiver (SMF, 1310nm, 10km, LC, DOM). A 100% Meraki now Cisco® SFP+ transceiver that operates at 1310nm over single-mode fiber, with a maximum reach of 10km connected via a LC connector. This Meraki now Cisco® compatible SFP+ transceiver has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. Our SFP+ transceiver will initialize and perform identically to Meraki now Cisco's transceiver and is built to meet or exceed Meraki now Cisco's specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum transfer distance	10000 m
Wavelength	1310 nm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	12.7 mm
Depth	55.9 mm
Height	7.62 mm
Weight	68.03 g
Technical details
Maximum transfer distance	10000 m
Wavelength	1310 nm
