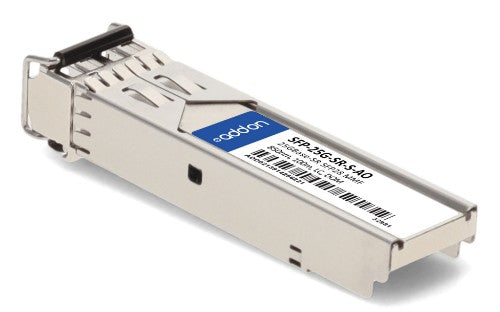

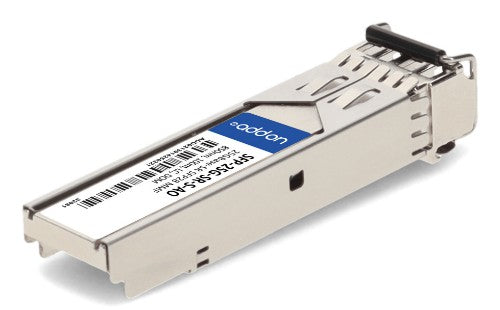

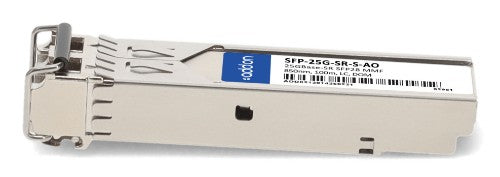

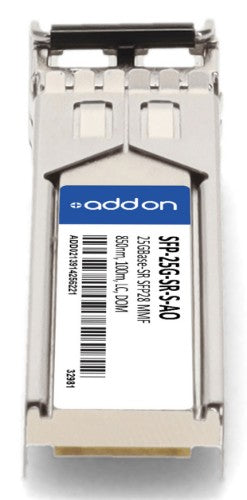

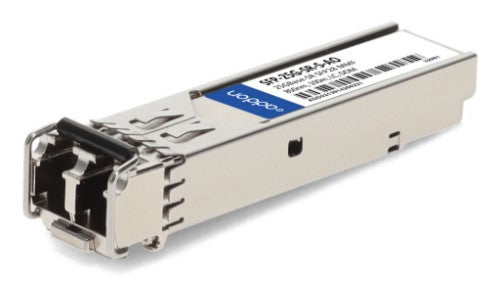

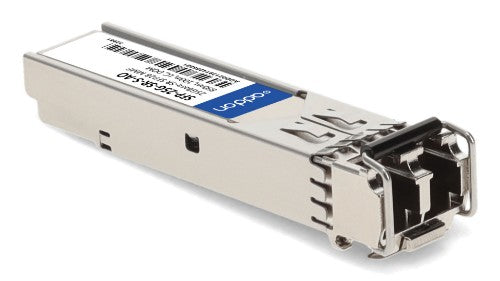

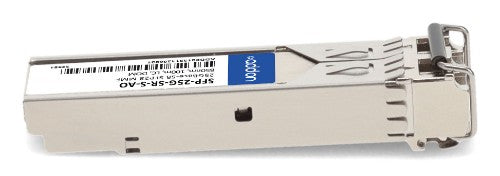

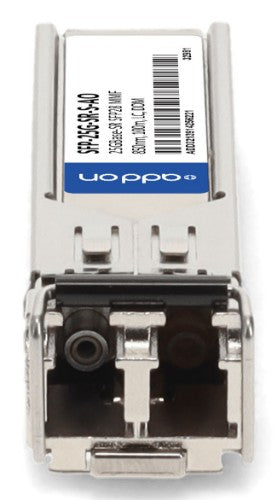

AddOn Networks SFP-25G-SR-S-AO network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm

Cisco SFP-25G-SR-S Compatible TAA Compliant 25GBase-SR SFP28 Transceiver (MMF, 850nm, 100m, LC, DOM)

Description

This Cisco® SFP-25G-SR-S compatible SFP28 transceiver provides 25GBase-SR throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Cisco®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum transfer distance	100 m
Wavelength	850 nm
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Fiber ethernet cabling technology	25GBASE
Easy to install	Yes
Product colour	Stainless steel
Housing material	Metal
Hot-Plug support	Yes
Hot-swap	Yes
Brand compatibility	Cisco
Features
Easy to install	Yes
Product colour	Stainless steel
Housing material	Metal
Hot-Plug support	Yes
Hot-swap	Yes
Brand compatibility	Cisco
Power
Maximum voltage	3.465 V
Input voltage	3.3 V
Certificates
Compliance certificates	CE, Network Equipment Building Standards (NEBS), REACH, RoHS, Trade Agreements Act (TAA), WEEE
Sustainability
Doesn't contain	Lead
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	69.8 mm
Package height	30.5 mm
Hot-Plug support	Yes
Hot-swap	Yes
Maximum transfer distance	100 m
Wavelength	850 nm
Doesn't contain	Lead
Compliance certificates	CE, Network Equipment Building Standards (NEBS), REACH, RoHS, Trade Agreements Act (TAA), WEEE
Packaging data
Package depth	120.7 mm
Package width	69.8 mm
Package height	30.5 mm
Package weight	181.4 g
Weight & dimensions
Package depth	120.7 mm
Package width	69.8 mm
Package height	30.5 mm
Package weight	181.4 g
Logistics data
Quantity per pack	1 pc(s)
