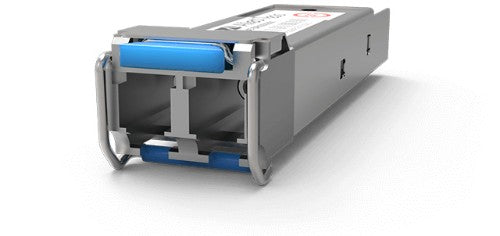

Allied Telesis AT-SP10LRA/I network transceiver module Fiber optic 10000 Mbit/s SFP+

SMF, LC, Up to 10 km, 1310nm

Key Features

• 10Gbps data rate
• Compact size
• Flexible architecture
• Hot-swappable
• RoHS compliant
• Compliant to SFP+ Electrical MSA SFF-8431
• Compliant to SFF-8472 MSA
• Lower power consumption < 1 Watt
• Digital diagnostics monitoring (DDM)
• Maximum data rate of 10.3Gbps
• BiDi options available

Description

10 Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP10 Series offers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise and service provider transport applications. These industry-standard hot-swappable devices simply plug into the Ethernet SFP+ port on all SFP+-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.

Compatibility
Allied Telesis SP10 Series 10 Gigabit SFP+ modules are supported on all Allied Telesis devices with SFP+ uplink connections.

Options
The SP10 Series offers short-haul and long-haul solutions. From the inexpensive Allied Telesis SP10SR to the far-reaching Allied Telesis SP10ZR80/I, the network can be extended to meet any performance needs.

Interoperability
The SP10 Series SFP+ modules fully comply with industry-standard networking regulations. This allows the SP10 Series to be used with any networking equipment which complies with industry standards.

BiDi transceivers
Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network—without installing new fibers—by utilizing a single fiber for both the send and receive signals.

Applications
The Allied Telesis 10G Long Reach Multimode (LRM) optic is designed to transmit and receive optical data over a legacy OM1 multi-mode fiber link up to 220m. This makes it ideal for high-speed storage area networks, computer cluster cross-connect and custom high-speed data pipes.

The extended temperature optics offer a wide operating temperature range of -40C to 85C, allowing deployment in even the harshest industrial environments.

Specifications

Performance
SFP transceiver type	Fiber optic
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1310 nm
Link budget	6 dB
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Maximum transfer distance	10000 m
Tx power (min)	-8 dBmW
Tx power (max)	1 dBmW
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Product colour	Silver
Housing material	Metal
Plug and Play	Yes
Hot-swap	Yes
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Metal
Plug and Play	Yes
Hot-swap	Yes
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Packaging content
Quantity per pack	1 pc(s)
Technical details
Plug and Play	Yes
Hot-swap	Yes
Maximum transfer distance	10000 m
Tx power (min)	-8 dBmW
Tx power (max)	1 dBmW
Sustainability compliance	Yes
Compliance certificates	RoHS
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
