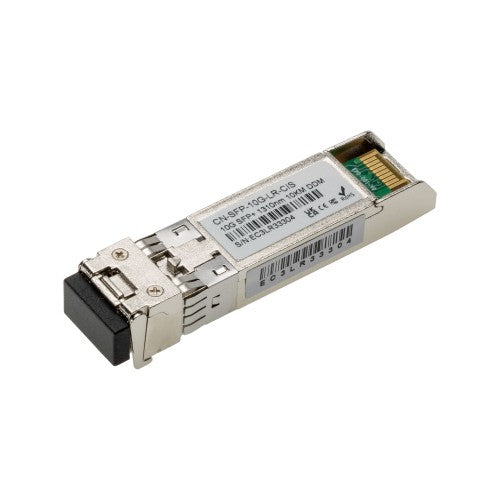

10GBASE-LR SFP+ SMF 10km LC Cisco Compatible
The SFP+ 10km module electrical interface is compliant with SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.
The module provides differential termination and reduces differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200mm of improved FR4 material or up to 150mm of standard FR4 with one connector
Key Features
- Optical interface compliant to IEEE802.3ae 10GBASE-LR
- Electrical interface compliant with SFF-8431
- Hot Pluggable
- 1310nm DFB transmitter, PIN photo-detector
- Low power consumption
Description
This 1310nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over singlemode optical fibre for a link length of 10km.The SFP+ 10km module electrical interface is compliant with SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.
The module provides differential termination and reduces differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200mm of improved FR4 material or up to 150mm of standard FR4 with one connector
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 1260 nm |
| Tx wavelength (max) | 1355 nm |
| Rx wavelength (min) | 1270 nm |
| Rx wavelength (max) | 1610 nm |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | LR |
| Country of origin | China |
| Product colour | Metallic |
| Hot-swap | Yes |
| Brand compatibility | Cisco |
| Features | |
| Product colour | Metallic |
| Hot-swap | Yes |
| Brand compatibility | Cisco |
| Form factor | SFP+ |
| Country of origin | China |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Logistics data | |
| Country of origin | China |
-
