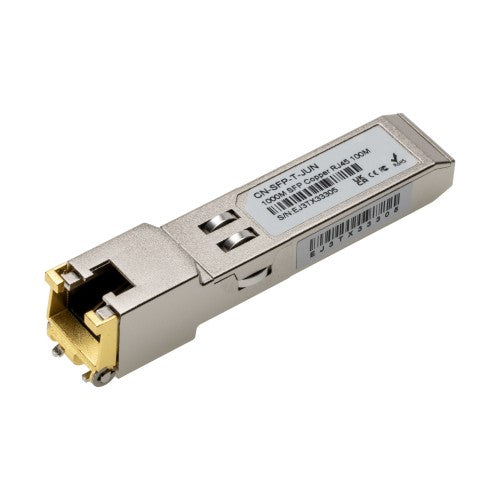

Cablenet CN-SFP-T-JUN network transceiver module Copper 1000 Mbit/s

1GBASE Copper RJ45 100m Juniper Compatible

Key Features

• Up to 1.25Gbps bi-directional data links
• Hot-pluggable SFP footprint
• TX Disable and RX Los/without Los function
• Fully metallic enclosure for low EMI
• Low power dissipation (1.05W typical)

Description

Our Copper Small Form Pluggable (SFP) transceivers are high-performance, cost-effective modules compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE802.3-2002 and IEEE802.3ab, supporting 1000Mbps data-rate up to 100 metres over unshielded twisted-pair category 5 cable.

The module supports 1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2 wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2 wire serial bus at address ACh.

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Networking standards	IEEE 802.3ab
Maximum transfer distance	100 m
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	No
Ethernet interface type	1.25 Gigabit Ethernet
Copper ethernet cabling technology	1000BASE
Country of origin	China
Easy to install	Yes
Product colour	Metallic
Plug and Play	Yes
Hot-swap	Yes
Brand compatibility	Juniper
Features
Easy to install	Yes
Product colour	Metallic
Plug and Play	Yes
Hot-swap	Yes
Brand compatibility	Juniper
Form factor	SFP
Country of origin	China
Network
SFP transceiver type	Copper
Networking standards	IEEE 802.3ab
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Ethernet interface type	1.25 Gigabit Ethernet
Technical details
Plug and Play	Yes
Hot-swap	Yes
Maximum transfer distance	100 m
Ethernet LAN	Yes
Logistics data
Country of origin	China
