Cisco

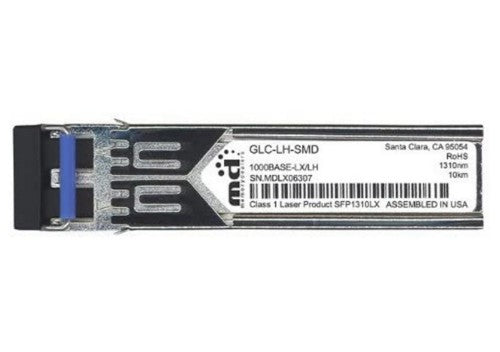

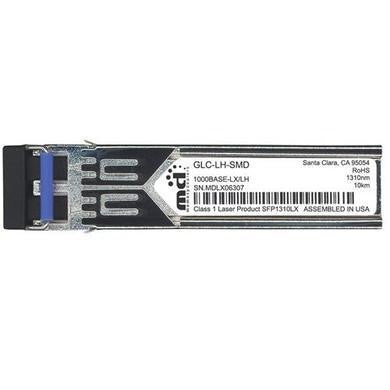

Cisco 1000BASE- LX/LH SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-LH-SMD=)

SKU GLC-LH-SMD=
£900.42
£407.64
£900.42
£407.64
Excluding taxes
1000BASE- LX/LH SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-LH-SMD=)

Key Features

  • COMPATIBILITY: 1000BASE-LX/LH SFP is designed for long-reach single-mode fibres but works over multi-mode fibre as well.
  • OPERATION: Operates on standard single-mode fibre-optic link spans of up to 10 km and up to 550 metres on multi-mode fibre (transmitter should be coupled through a mode conditioning patch cable when used over multi-mode fibre type)
  • HOT SWAPPABLE: Plugs into an Ethernet SFP port or slot with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for flexible media and interface choice on a port-by-port basis
  • PEACE OF MIND: 5-year standard replacement warranty

Description

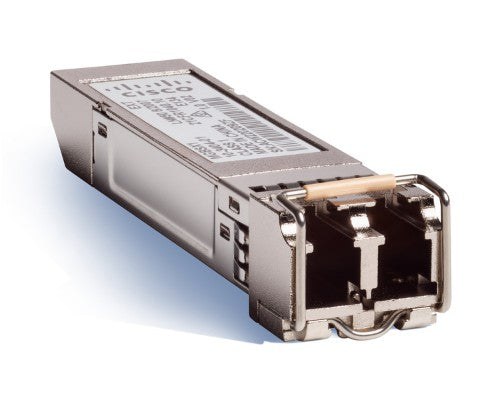

The Cisco 1000BASE-LX/LH-SMD= SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.

Specifications

Network
Fiber optic connector LC, PC
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technology 1000BASE-LX,1000BASE-LH
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Technical details
Package width 143 mm
Package height 44.5 mm
Maximum transfer distance 10000 m
Wavelength 1300 nm
Compatible products Catalyst Express 500/520 Cisco ME 3400/3600X/3800X/4900/6500 Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975 Catalyst 3560/3560-E/3560-X/3560-C
Cabling technology 1000BASE-LX,1000BASE-LH
Performance
Country of origin China
Compatible products Catalyst Express 500/520 Cisco ME 3400/3600X/3800X/4900/6500 Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975 Catalyst 3560/3560-E/3560-X/3560-C
Fiber optic connector LC, PC
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum transfer distance 10000 m
Wavelength 1300 nm
Cabling technology 1000BASE-LX,1000BASE-LH
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
SFP transceiver standard LH, LX
Harmonized System (HS) code 85369010
Features
Country of origin China
Compatible products Catalyst Express 500/520 Cisco ME 3400/3600X/3800X/4900/6500 Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975 Catalyst 3560/3560-E/3560-X/3560-C
Packaging data
Package depth 158.8 mm
Package width 143 mm
Package height 44.5 mm
Package weight 90.7 g
Weight & dimensions
Package depth 158.8 mm
Package width 143 mm
Package height 44.5 mm
Package weight 90.7 g
Logistics data
Harmonized System (HS) code 85369010
Quantity per pack 1 pc(s)
